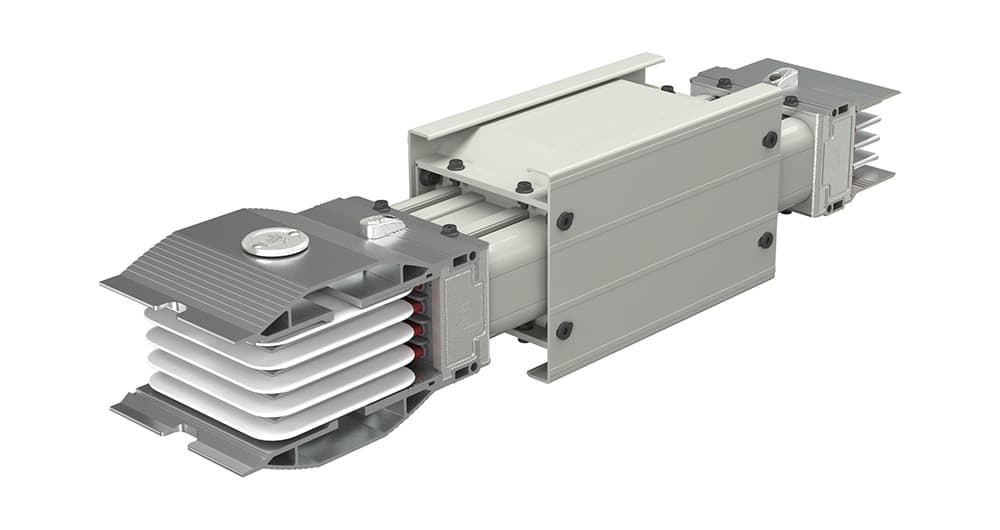

Cast-resin busbar trunking for outdoor environments
E-Line CCR
Electricity transmission was historically achieved by connecting several very thick cables in parallel. Supporting these cables requires a large quantity of cable trays and support systems, making the whole system costly and obsolete. Using cast-resin busbar trunking such as E-Line CCR brings many advantages in outdoor installations, for example in power plants and Oil & Gas applications. The aluminium enclosure covers the DURACOMP composite material, made of pure silicon minerals and epoxy resin, making it highly resistant to temperature and mechanical stress and insulating the busbar from external elements.
Technical Features
Current range
850 A to 6300 A current range
Rated performance taken from the original product datasheet.
Ingress protection
IP68 protection for outdoor environments
Protection and service continuity declared by the manufacturer.
Conductors
Fully tinned copper conductors
Conductor configuration and materials available for the range.
Configuration
Configurable with 3 / 4 / 4½ / 5 conductors
Key construction element or configuration of the busbar solution.
Features
- 850 A to 6300 A current range
- IP68 protection for outdoor environments
- Fully tinned copper conductors
- Configurable with 3 / 4 / 4½ / 5 conductors
- Aluminium enclosure over a composite material made of pure silicon minerals and epoxy resin
- Compatible with E-Line KX modules
- Dedicated earth conductor option
- Corrosion resistant
- Resistant to chemicals
- Suitable for tropical environments
- High mechanical strength
- No chimney effect
