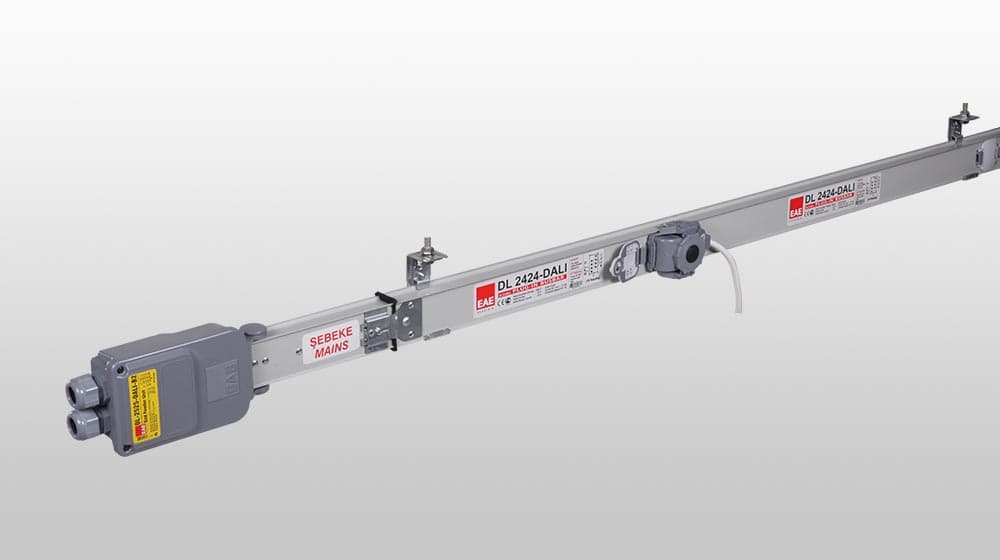

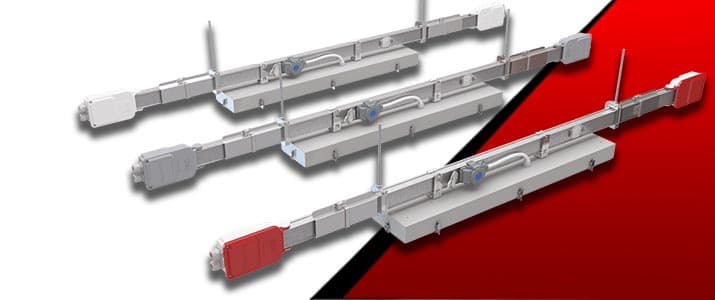

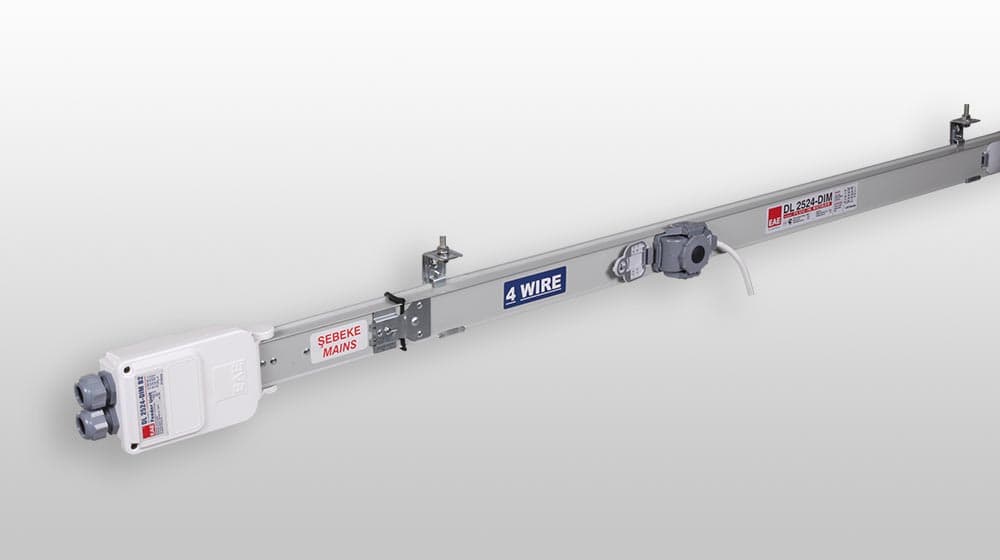

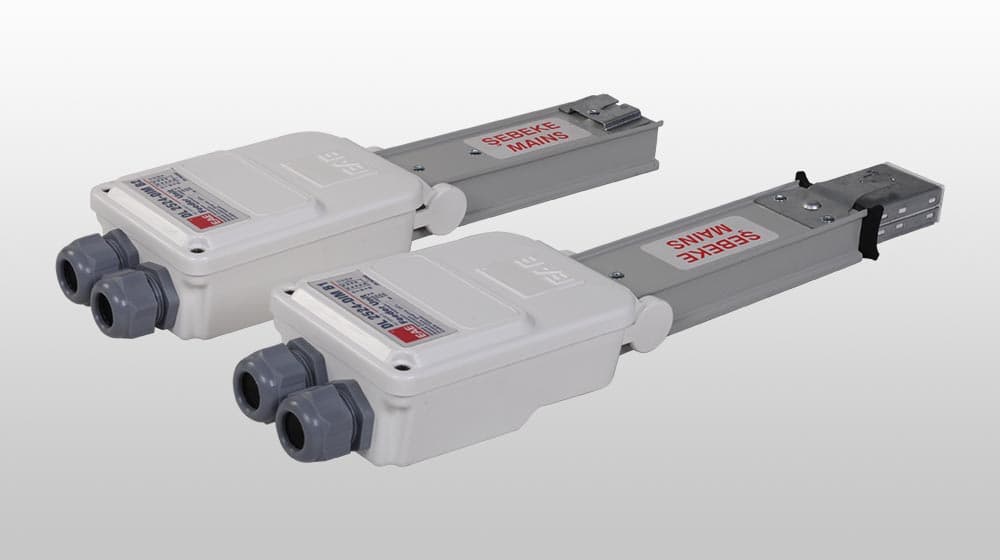

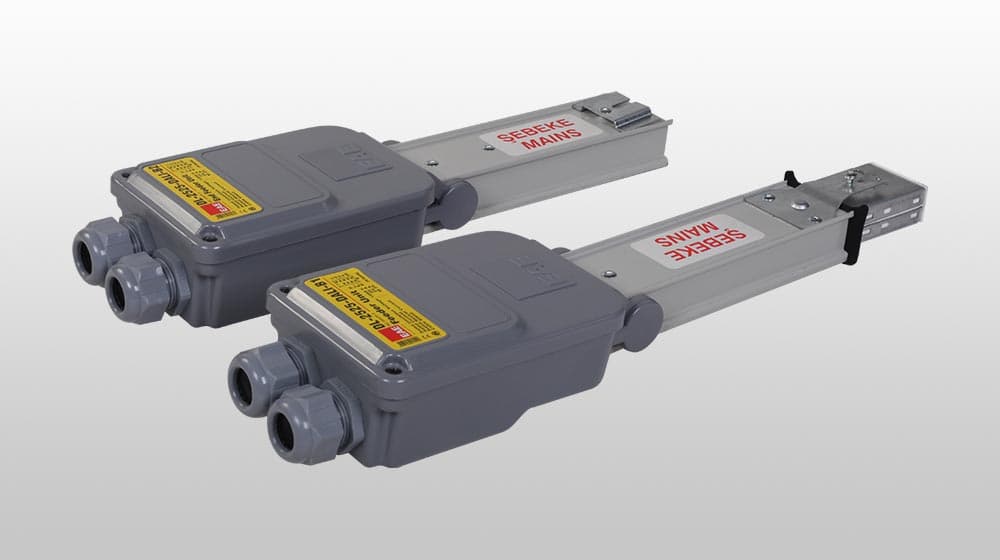

Busbar trunking for lighting circuits
E-Line DL
E-Line DL is used in lighting circuits requiring 25 A, 32 A or 40 A single-phase or three-phase current in buildings and industrial facilities. The 10 A / 16 A tap-off plugs (with and without cartridge fuses) are designed to supply lighting circuits according to their characteristics.
Technical Features
Current range
25 A – 40 A current range
Rated performance taken from the original product datasheet.
Ingress protection
IP55 protection class
Protection and service continuity declared by the manufacturer.
Conductors
Copper conductors insulated along their entire length
Conductor configuration and materials available for the range.
Configuration
Configurable with (2+2) … (5+5) conductors
Key construction element or configuration of the busbar solution.
Features
- 25 A – 40 A current range
- IP55 protection class
- Copper conductors insulated along their entire length
- Configurable with (2+2) … (5+5) conductors
- Enclosure (on request, RAL 7038 epoxy-polyester electrostatic powder coating)
- Up to 8 tap-off windows on the standard 3 m element, on both sides
- Tap-off plugs are built to prevent incorrect insertion and the use of wrong phases
- Different colours indicate different phase combinations

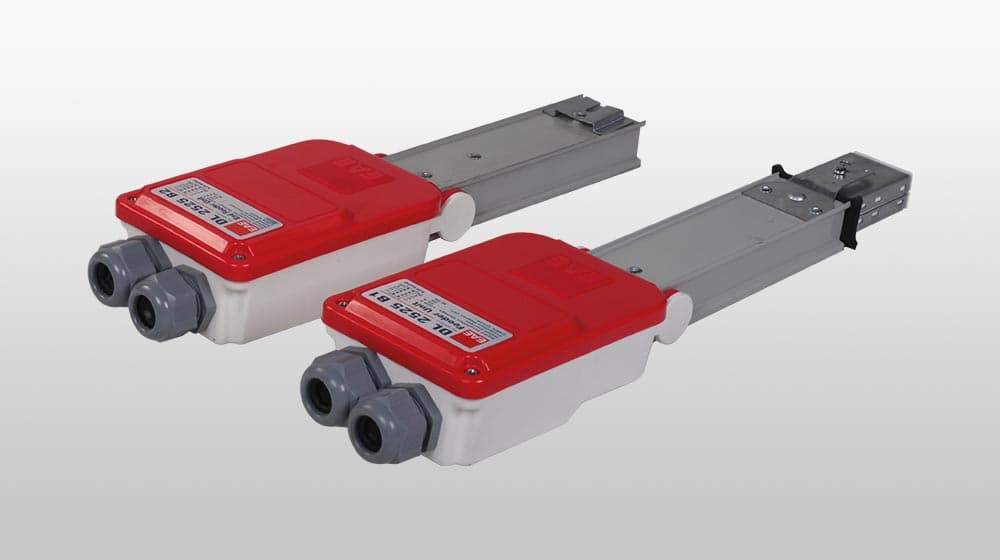

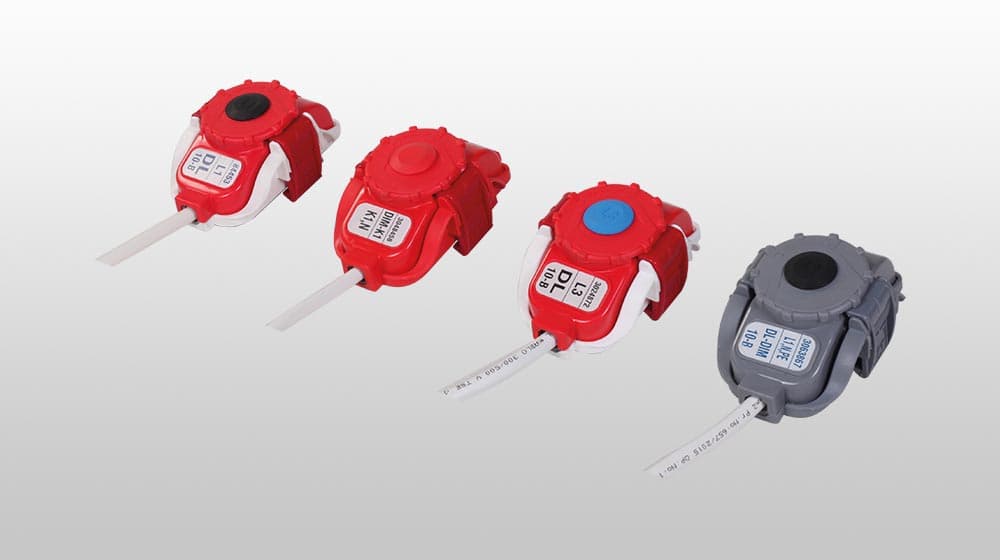

- The covers of the pre-wired 10 A tap-off plugs of the DL system come in different colours to identify the circuits
- During installation the earth contact is the first to engage and the last to disengage when the plug is removed
- Mechanical and electrical joint engagement is quick and immediate: the operation ends by simply tightening a safety screw
- Several conductor combinations are available, (2+2) … (5+5)
Applications
Lighting circuitsCommercial buildingsIndustrial facilitiesLight single-phase and three-phase lines
