Busbar trunking for low power
E-Line KAM/KAP
E-Line KAM and E-Line KAP are designed to supply low-power systems: E-Line KAM for 25 A – 32 A and E-Line KAP for 40 A – 63 A. They can be used to power devices of various kinds, from industrial to decorative. The KAM and KAP busbar ranges are designed and certified in full compliance with international standards IEC 61439-1/6.
Technical Features
Current range
25 A – 32 A current range (KAM) / 40 A – 63 A current range (KAP)
Rated performance taken from the original product datasheet.
Ingress protection
IP55 protection class
Protection and service continuity declared by the manufacturer.
Conductors
Copper conductors insulated along their entire length
Conductor configuration and materials available for the range.
Configuration
Configurable with 2, 3, 4 or 5 conductors
Key construction element or configuration of the busbar solution.
Features
- 25 A – 32 A current range (KAM) / 40 A – 63 A current range (KAP)
- IP55 protection class
- Copper conductors insulated along their entire length
- Configurable with 2, 3, 4 or 5 conductors

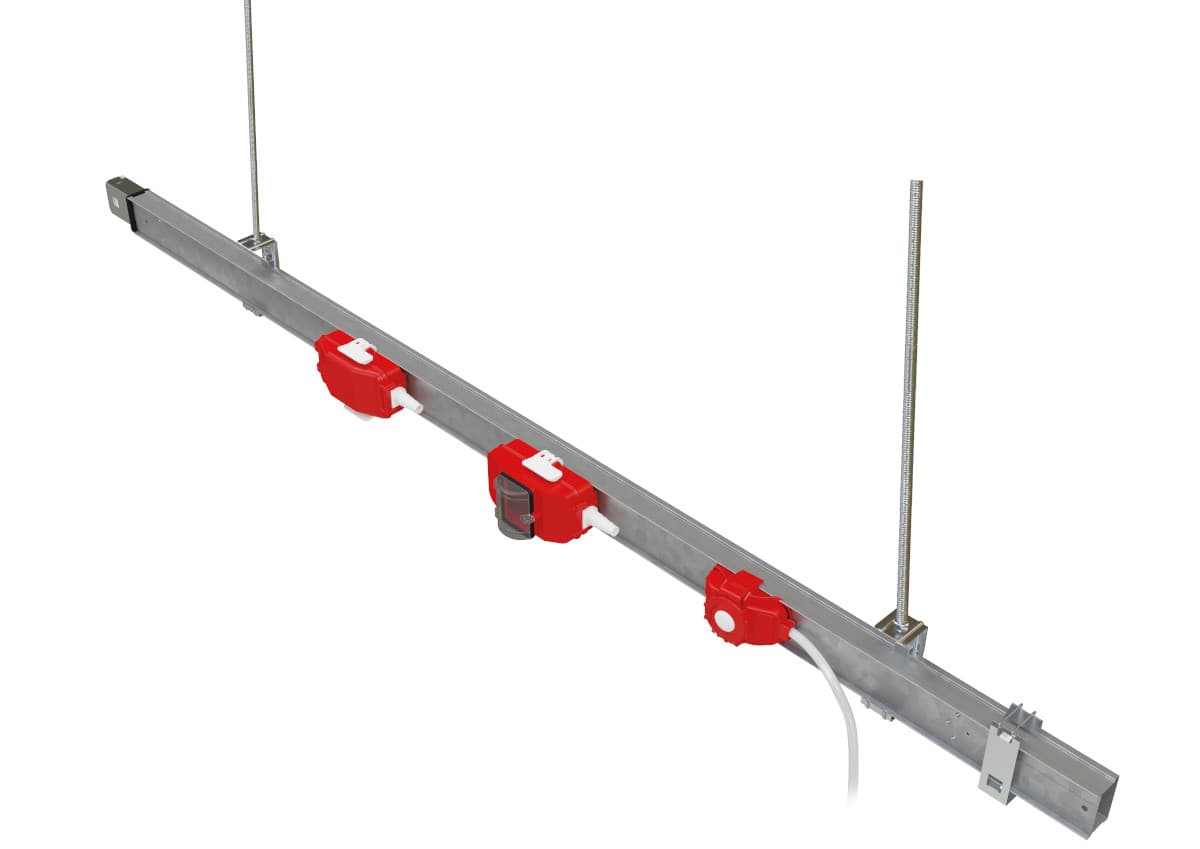

- One plug-in tap-off point at standard 75 cm intervals
- 0.75 m single-phase 10 A connectors without fuse

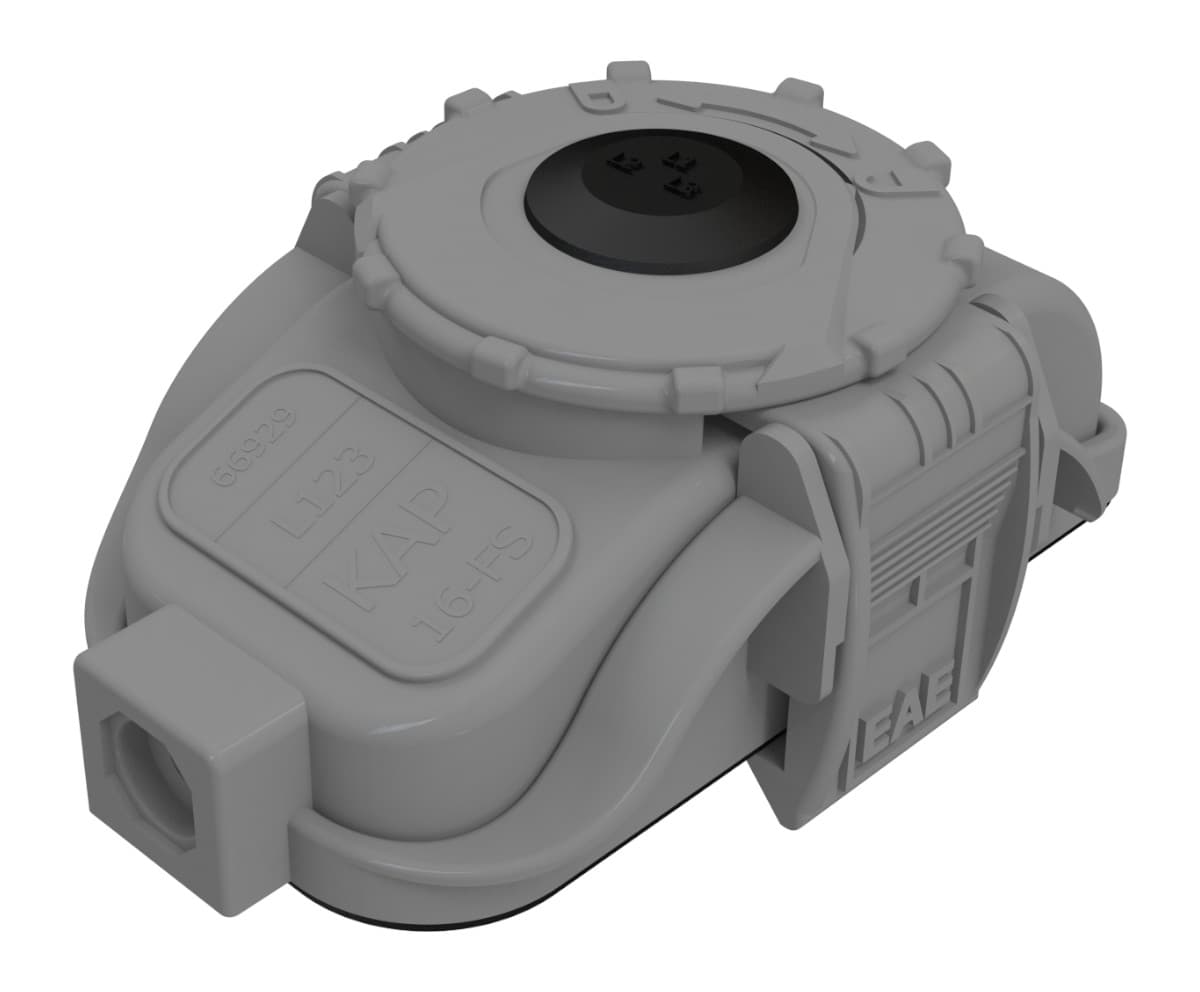

- 16 A single-phase plugs with terminal, with cartridge fuse or without fuse
- 16 A three-phase plugs with terminal and without fuse
- Flame-retardant, halogen-free plastic insulation
- Three-phase tap-off boxes suitable for use with (cylindrical) cartridge fuses
- Tap-off boxes usable with miniature circuit breaker (MCB) or residual current breaker with overcurrent protection (RCBO) up to 32 A
- The covers of the KAM/KAP tap-off plugs come in various colours so the technician can easily recognise the supplied phase
