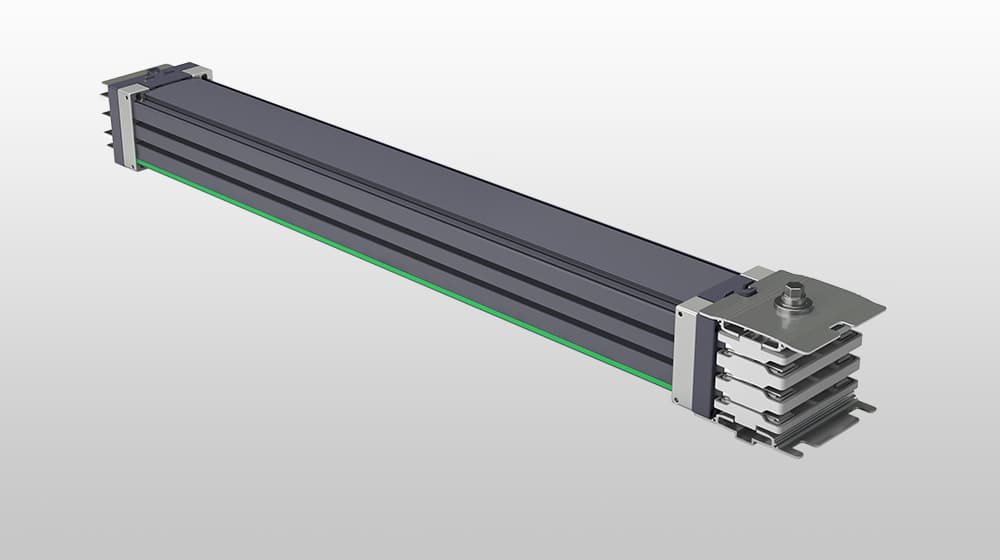

Busbar trunking for data centres
E-Line KD
E-Line KD busbar systems provide power transfer and distribution between 160 A and 1000 A. To power IT infrastructure in the data centre world, EAE offers a highly flexible, reliable busbar system designed to meet the challenge of scalability and provide an effective solution for future changes, additions and moves. The Data Rack Busbar also serves to power and meter non-standard rack rows in data centre white rooms. Tap-off boxes can be easily inserted at any point along the busbar, removed and repositioned where needed, with energy monitoring components.
Technical Features
Current range
160 A - 1000 A
Power transfer and distribution for data centre environments.
Ingress protection
IP23D
Protection suited to installations in data centre white rooms.
Conductors
Copper or aluminium
Configurations up to 6 conductors for maximum design flexibility.
Joint
Monobloc
Mechanism designed for safety, durability and speed of installation.
Features
- Highly flexible, reliable busbar system for IT infrastructure and data centres.
- Designed to meet the challenge of scalability and support future changes, additions and moves.

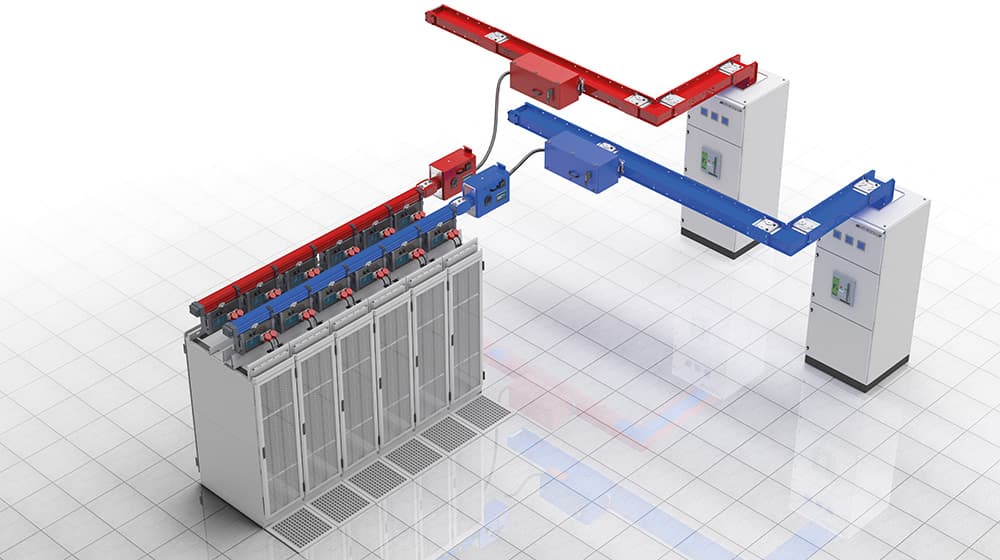

- Data Rack Busbar suitable for powering and metering standard and non-standard rack rows.

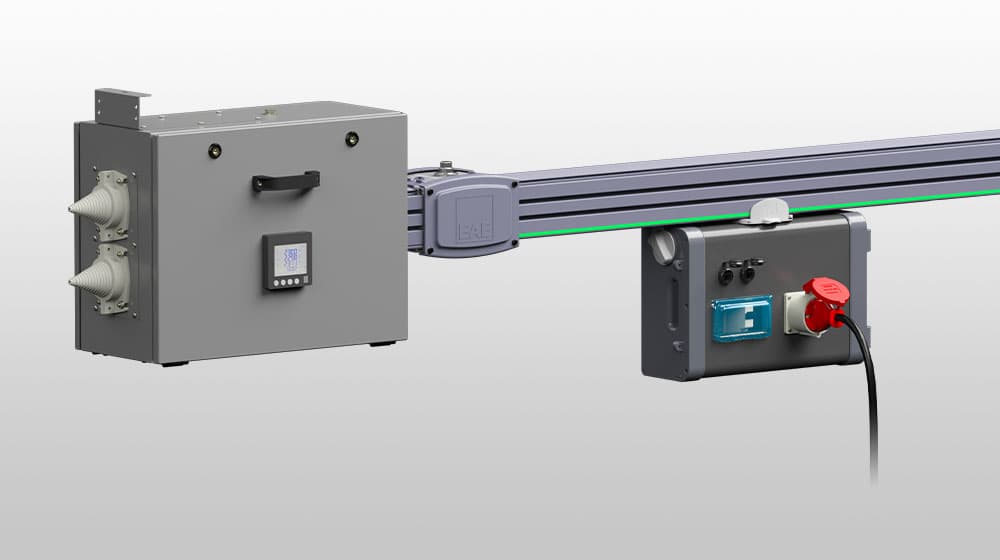

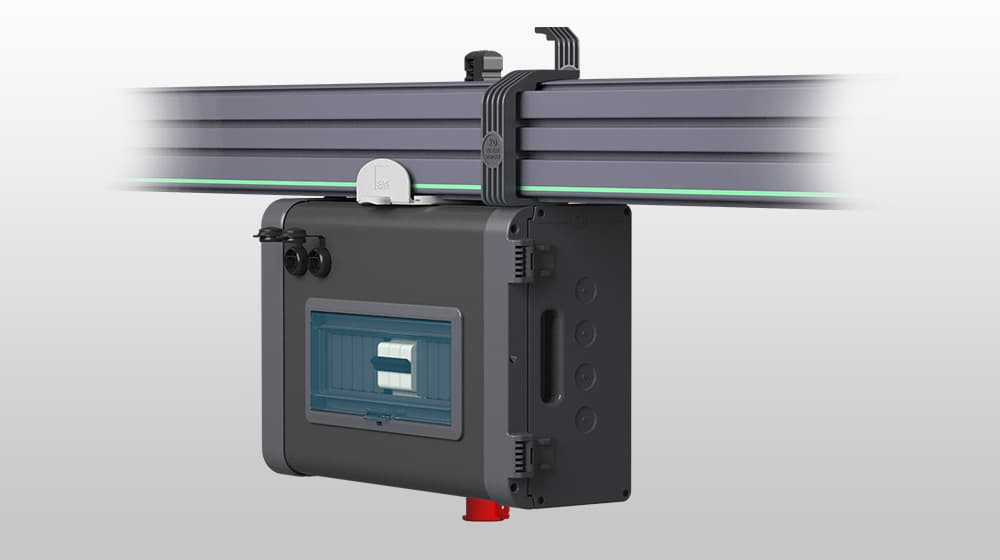

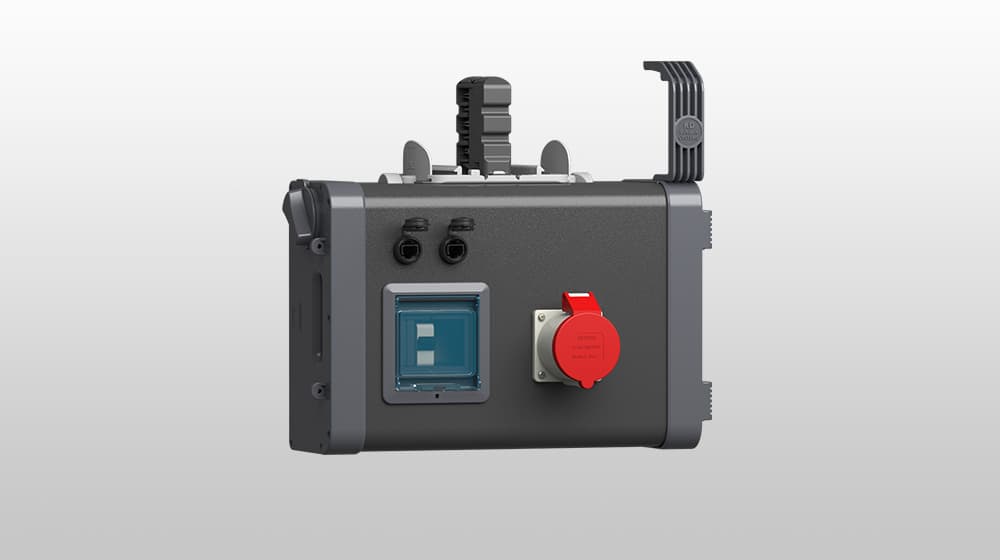

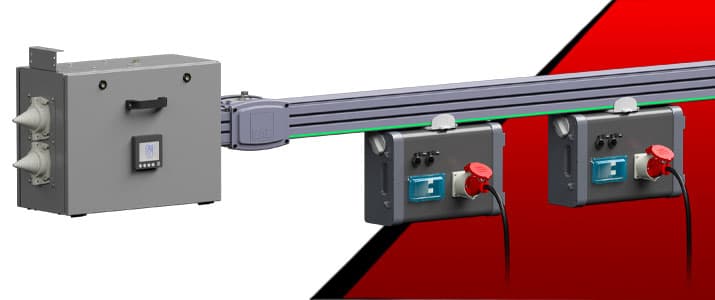

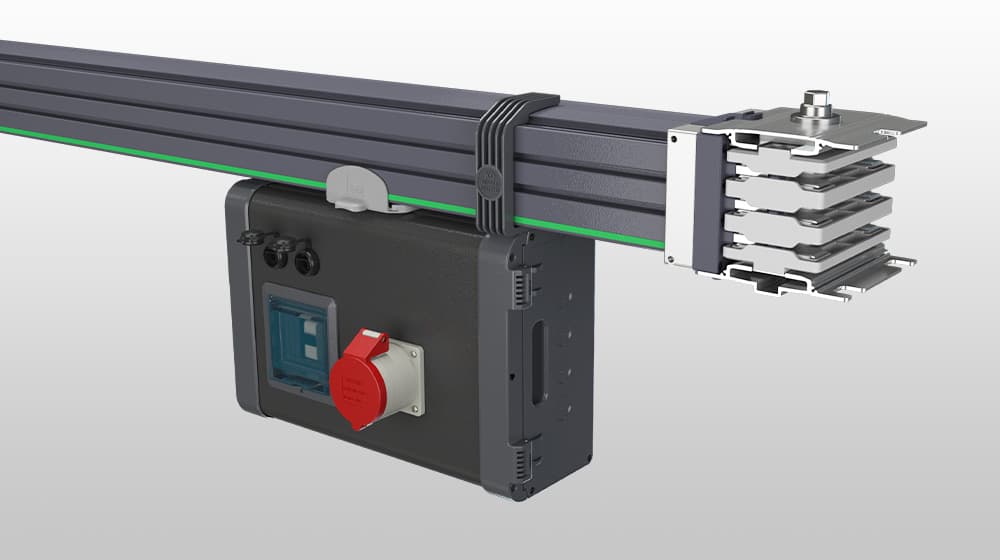

- Tap-off boxes that can be inserted, removed and repositioned at any point along the busbar.
- Components available for energy monitoring along the distribution.
- Continuous opening on the underside for high flexibility of tap-off points.
