Busbar trunking for transmission and distribution
E-Line KO-II
E-Line KO II busbar systems offer suitable solutions for the transmission and distribution of electricity in medium-sized buildings or industrial plants. They can be used in horizontal or vertical applications. Available solutions include sheet-metal tap-off boxes with circuit breakers or plastic boxes compatible with miniature circuit breakers. The range is designed to supply power from 160 A to 800 A at voltages up to 1 kV, with a modular structure oriented to flexibility, protection and service continuity.
Technical Features
Current range
160 A - 800 A
System designed for transmission and distribution of electricity in medium-sized buildings and industrial plants.
Ingress protection
IP55
Hermetically closed outlets and enclosure suited to installations with high protection requirements.
Conductors
Tinned copper or aluminium
Configurable with 4 / 4½ / 5 / 6 conductors to suit different plant layouts.
Joint
Monobloc
Connection designed for fast installation, electrical continuity and long-term reliability.
Features
- Suitable solution for power transmission and distribution in medium-sized buildings or industrial plants.
- Can be installed in horizontal or vertical applications.

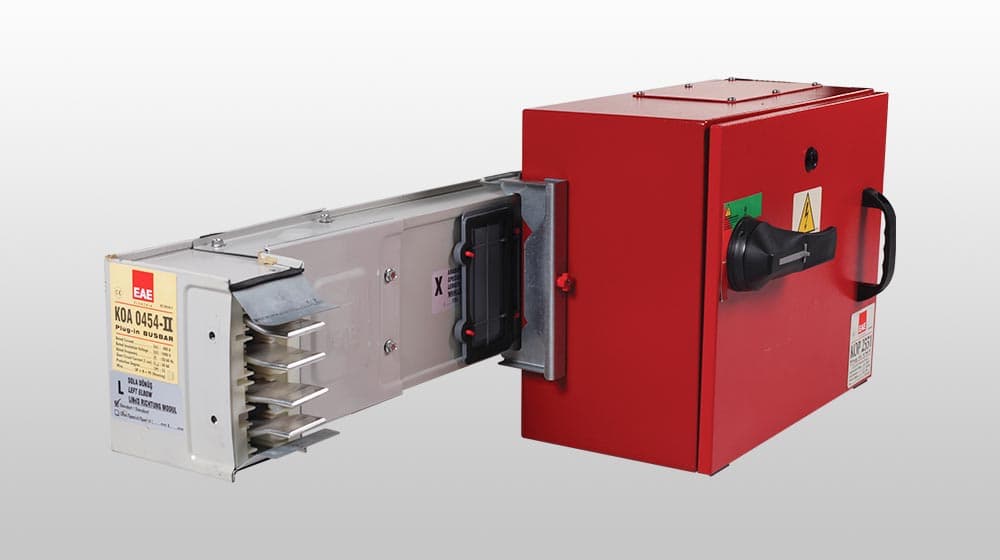

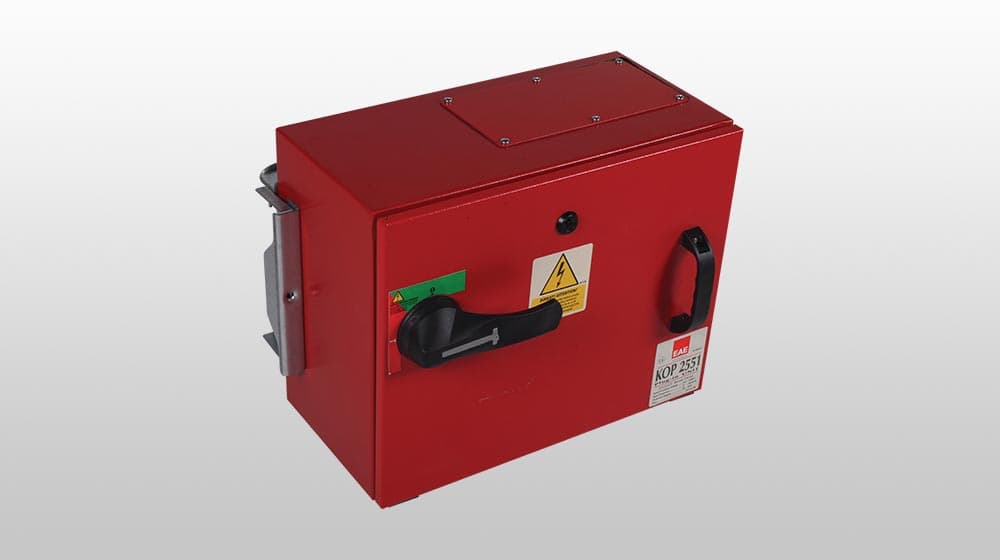

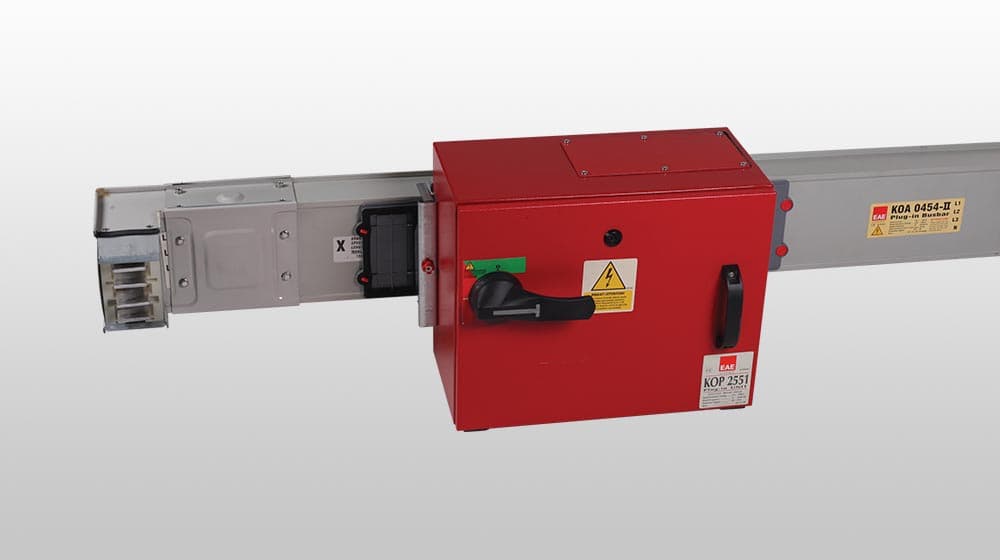

- Wide range of customisable tap-off boxes, in sheet metal or plastic, compatible with miniature circuit breakers.

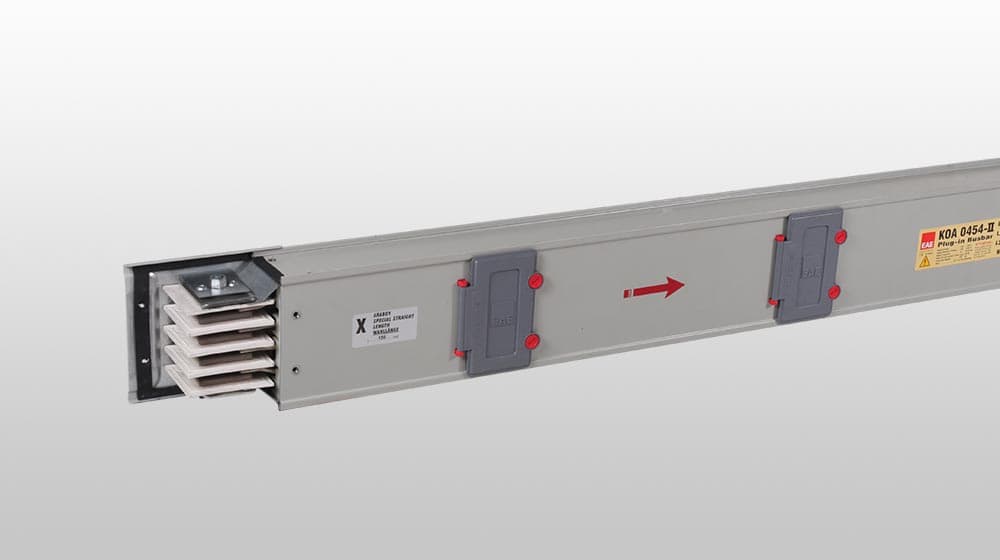

- Plug-in tap-off outlets every 50 cm on both sides as standard.
- Hermetically closed outlets for greater system protection.
- Dedicated earth conductor option for specialist configurations.
- Plastic insulation with conductors segregated in air.
- Enclosure also available with RAL 7038 epoxy-polyester electrostatic powder coating on request.
