System for lighting, sockets and small loads
E-Line KY-S

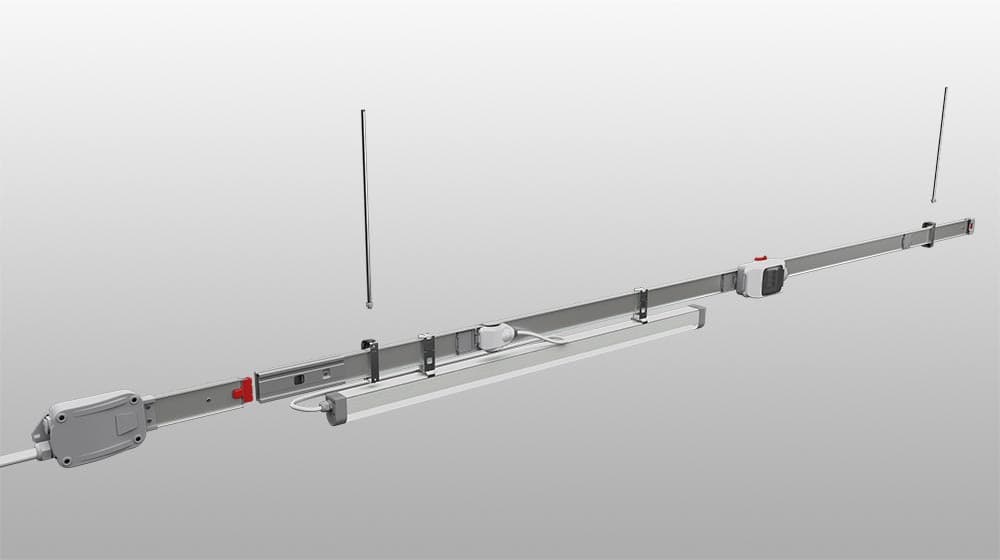

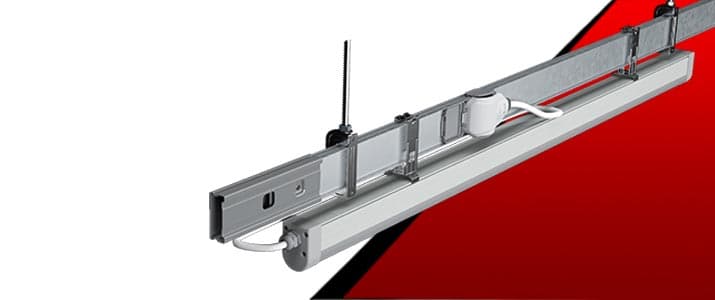

The KY-S busbar system is suitable for every type of lighting, socket and low-power circuit with current levels of 25-40-63 A. In lighting automation, DALI and DIM circuits can also be used to transmit the reference voltage of the emergency lighting kit. E-Line KY-S is designed for buildings and industrial facilities with lighting circuits and small/medium power supply circuits that require three-phase and/or single-phase electricity at 25, 40 and 63 A.
Technical Features
Current range
Current levels of 25-40-63 A
Rated performance taken from the original product datasheet.
Ingress protection
IP55 protection
Protection and service continuity declared by the manufacturer.
Conductors
Fully tinned copper conductors to prevent the formation of copper oxide
Conductor configuration and materials available for the range.
Configuration
Standard-length busbars (3 and 4 metres), plug-in points at 1 metre intervals
Key construction element or configuration of the busbar solution.
Features
- Current levels of 25-40-63 A
- IP55 protection
- Fully tinned copper conductors to prevent the formation of copper oxide
- Up to 6 conductors per side inside the enclosure
- Enclosure made of pre-galvanised sheet steel and, on request, painted RAL 7038

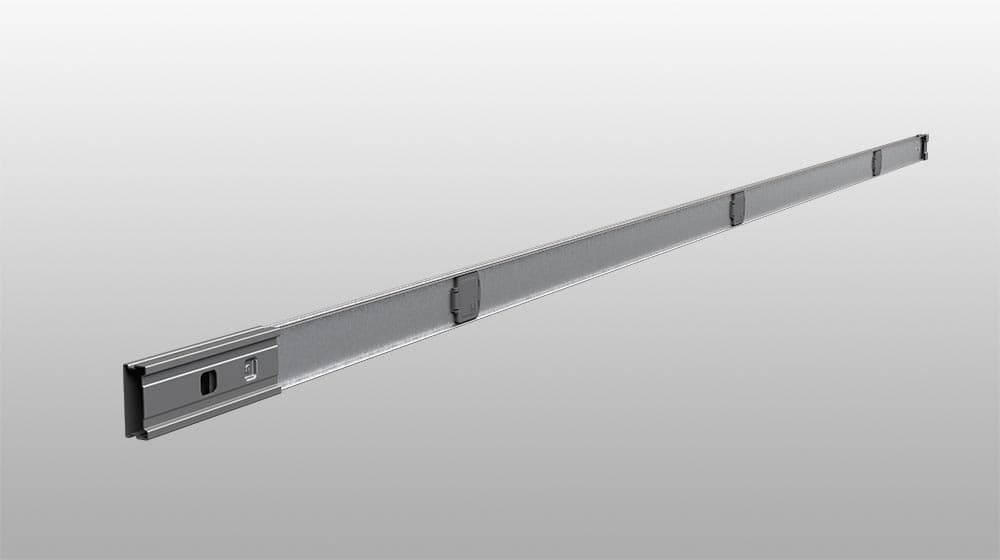

- Standard-length busbars (3 and 4 metres), plug-in points at 1 metre intervals
- On one side the busbar has 3 outlet windows on the standard 3 metre length, 4 outlet windows on the 4 metre busbar and 1 outlet window on the 1 metre busbar
- Silver-plated contacts at all joints and plug-in points
- Designed to minimise current resistance at the joints and prevent overheating of the contacts thanks to its silver-plated spring contact points
- Simple joint structure that prevents bending and elongation

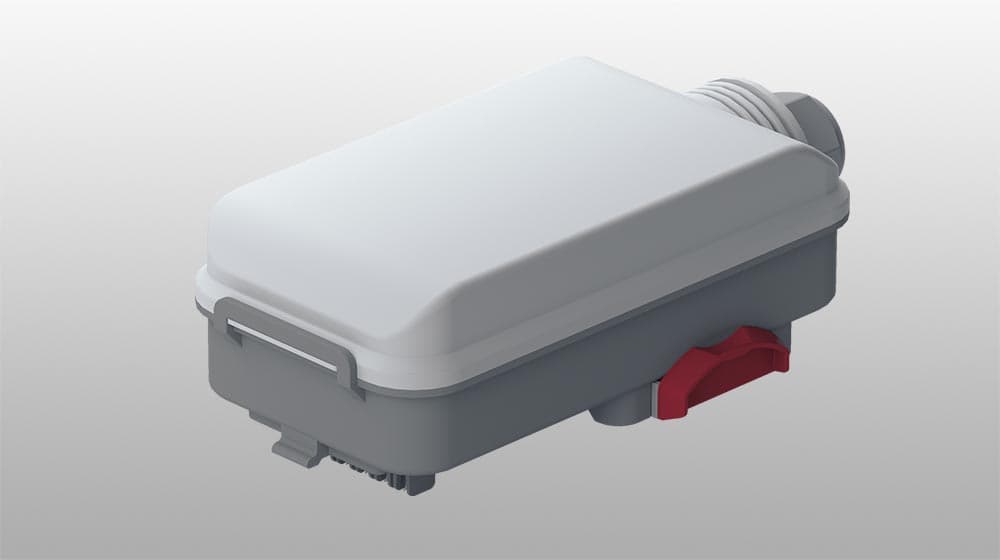

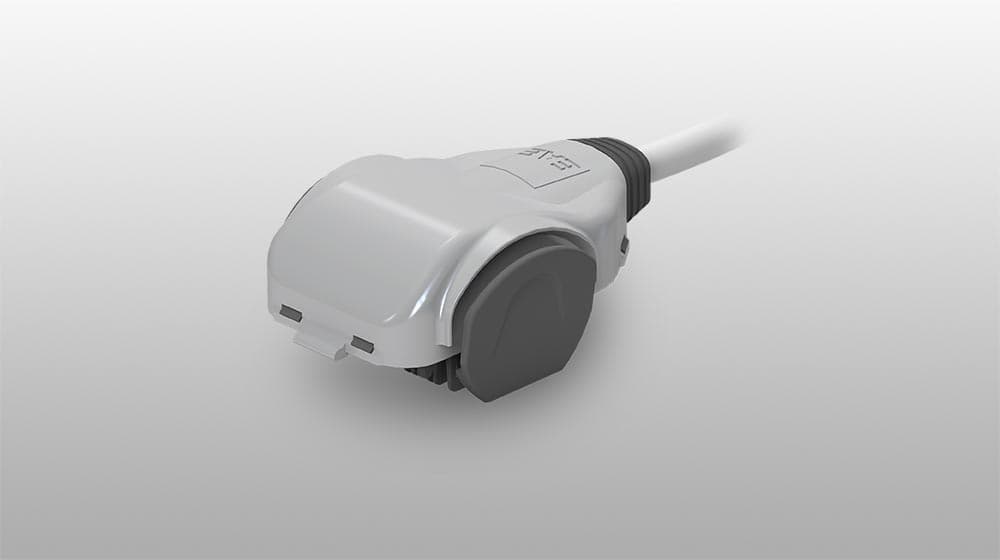

- Plugs and tap-off boxes are designed to prevent misuse and electric shock

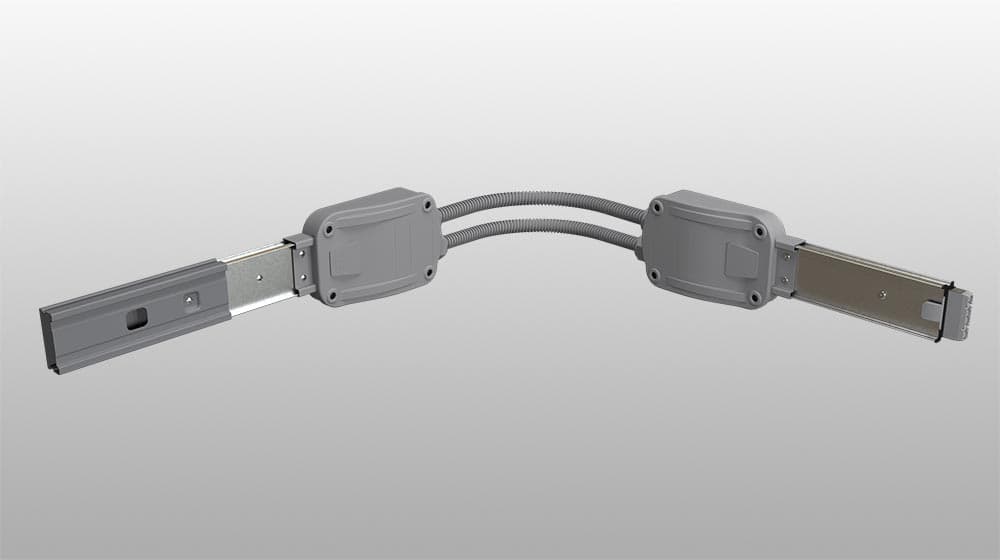

- Developed for easy use inside ceilings, walls and risers thanks to its flexible rotation modules and related fittings
