Busbar trunking for small businesses and industrial plants
E-Line MK

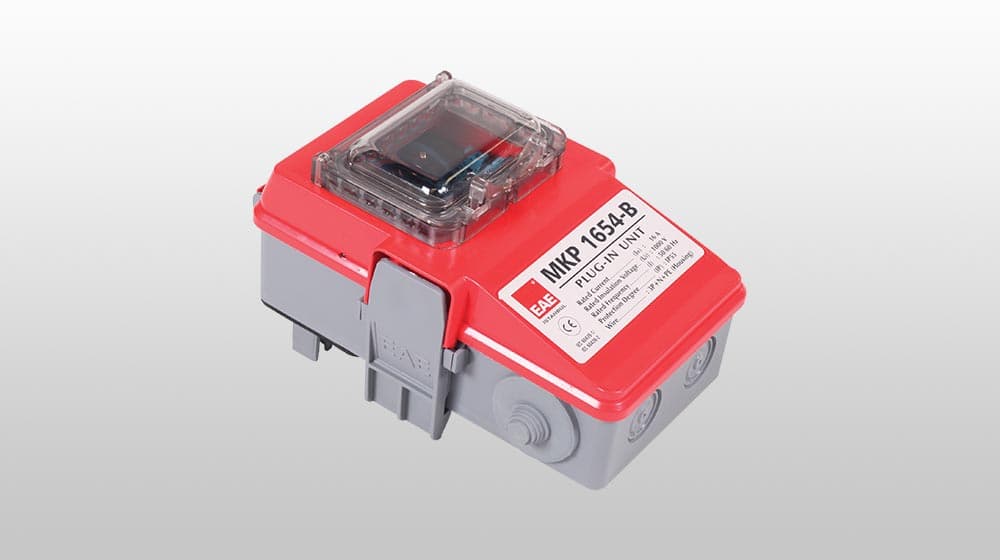

E-Line MK power distribution busbar trunking offers flexible, economical solutions for the transmission and distribution of electricity in small businesses, workshops and industrial plants. The MK range offers cost-effective solutions for different power requirements through its range of plastic tap-off boxes. It is designed to supply power from 100 A to 225 A.
Technical Features
Current range
100 A to 225 A current range
Rated performance taken from the original product datasheet.
Ingress protection
IP55 protection class
Protection and service continuity declared by the manufacturer.
Conductors
Fully tinned aluminium or copper conductors: 100 A / 160 A / 225 A
Conductor configuration and materials available for the range.
Configuration
Configurable with 4, 4½ or 5 conductors
Key construction element or configuration of the busbar solution.
Features
- 100 A to 225 A current range
- IP55 protection class
- Fully tinned aluminium or copper conductors: 100 A / 160 A / 225 A
- Configurable with 4, 4½ or 5 conductors

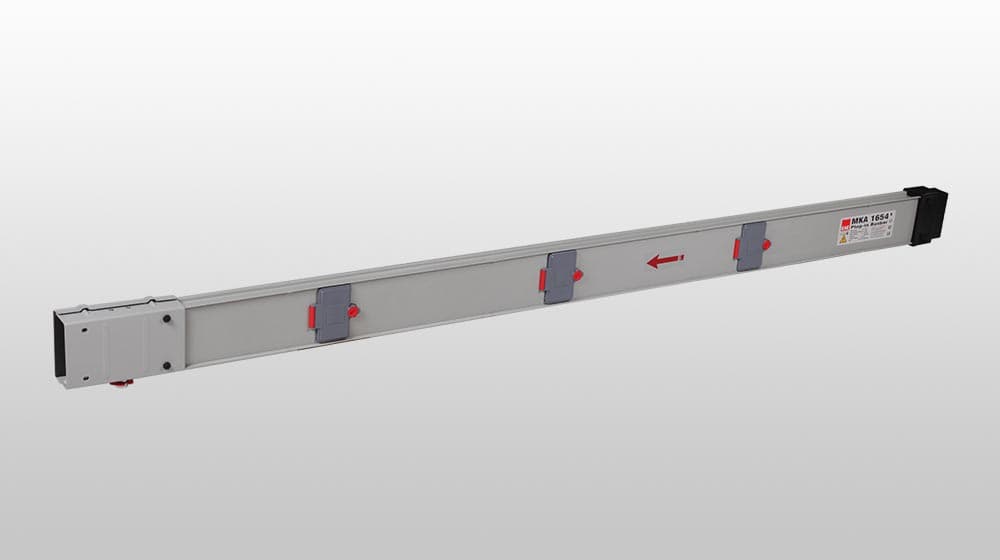

- Plug-in tap-off outlets every 50 cm on both sides as standard
- Dedicated earth conductor option
- RAL 7038 painted steel enclosure

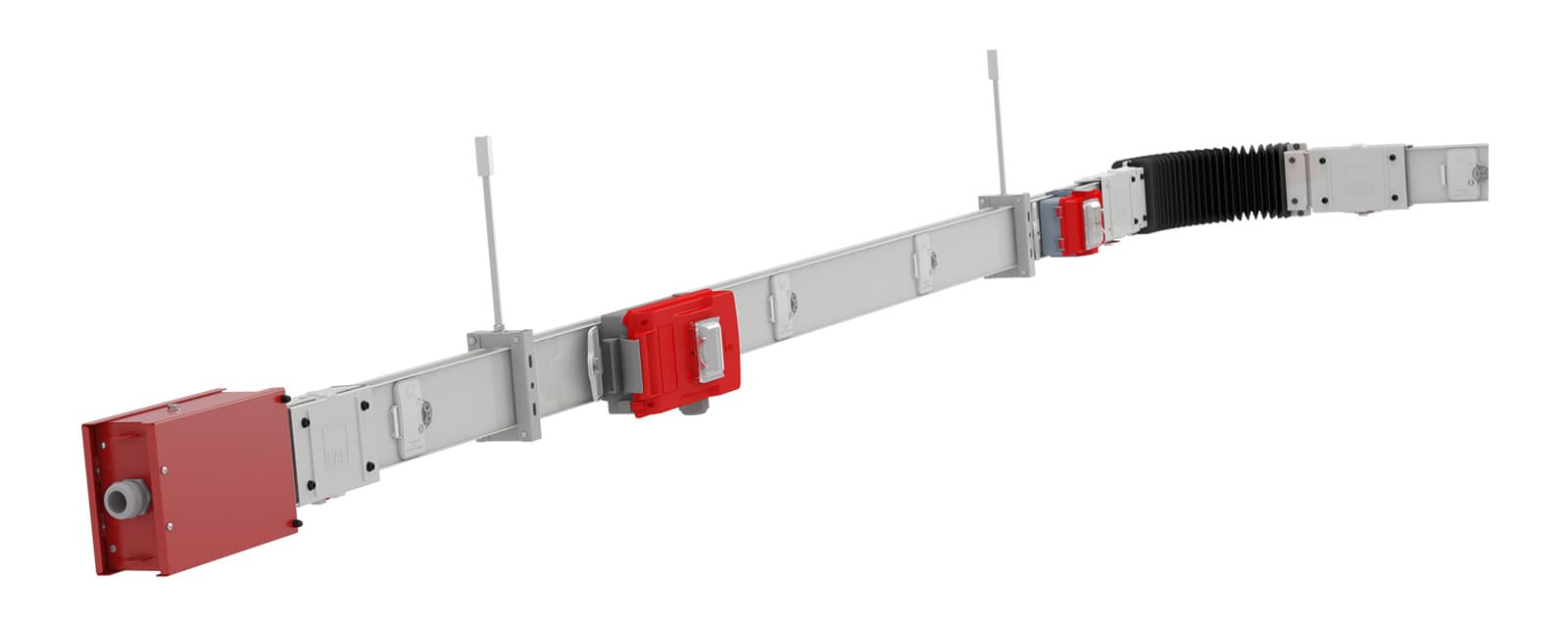

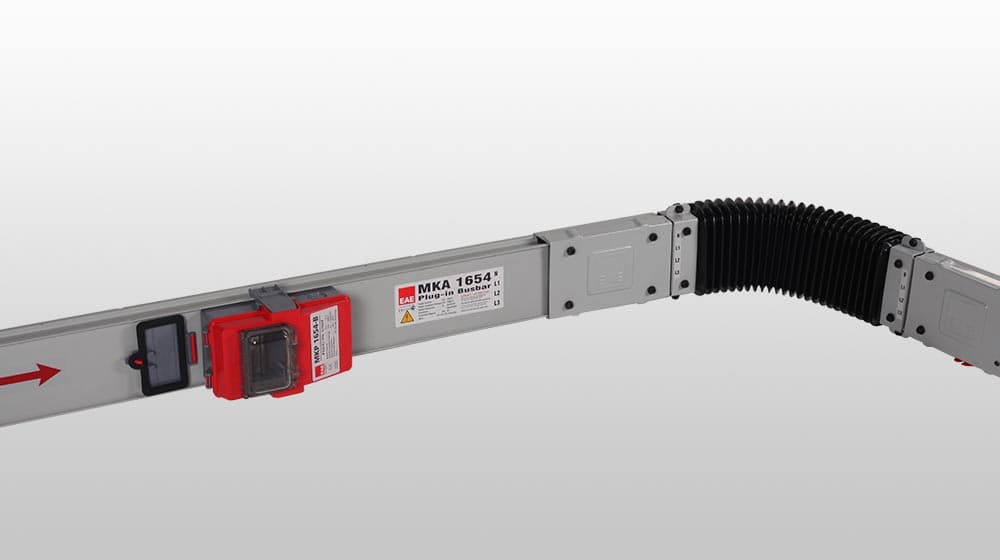

- Vertical, horizontal and elbow expansion modules are offered in a single module and can be easily implemented at the desired angles and in any direction thanks to their flexibility
- Power can be supplied from a total of 10 points on both sides of the busbar as standard
- 100% safety guaranteed by the locking system that prevents hand contact both when the IP windows of the busbar are open and when the tap-off boxes are in the off position (the IP class of the system is 2X)
- 4 conductors (L1/L2/L3/N/PE enclosure)
- 5 conductors (L1/L2/L3/N/PE/PE enclosure)
