Compact medium-voltage busbar trunking
E-Line MV

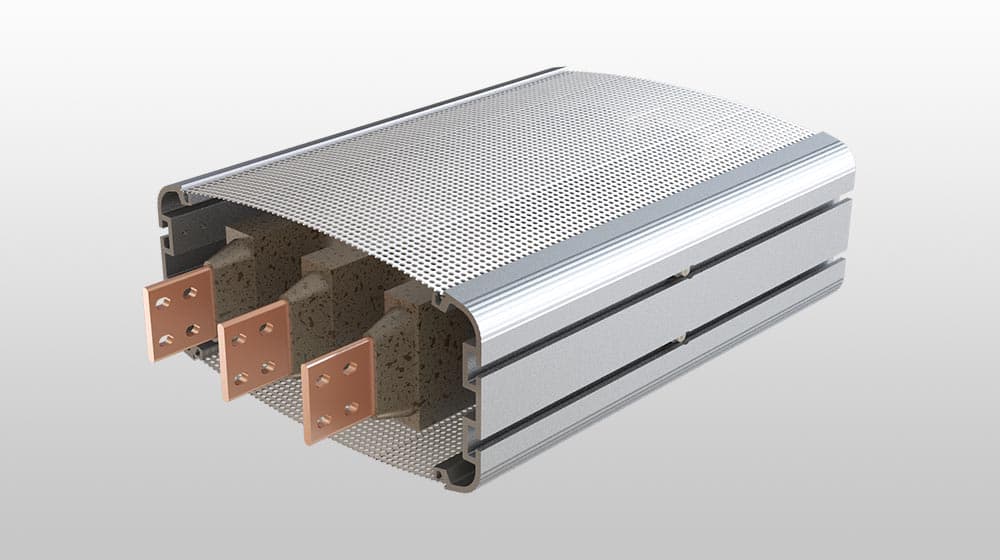

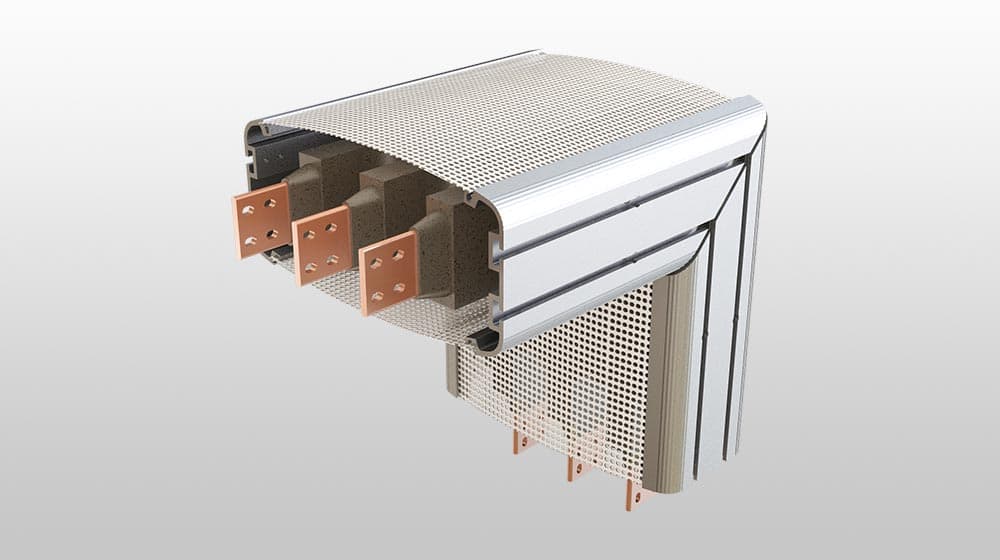

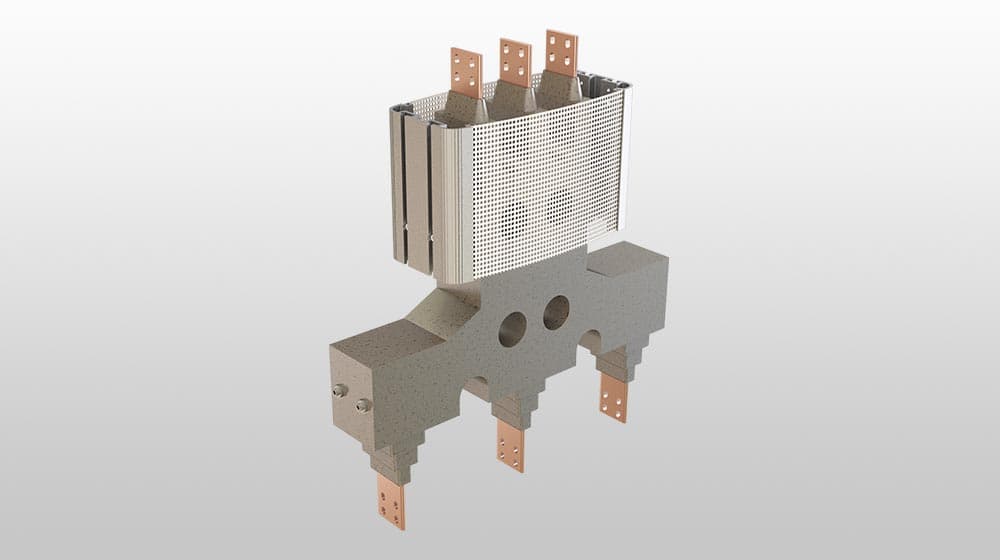

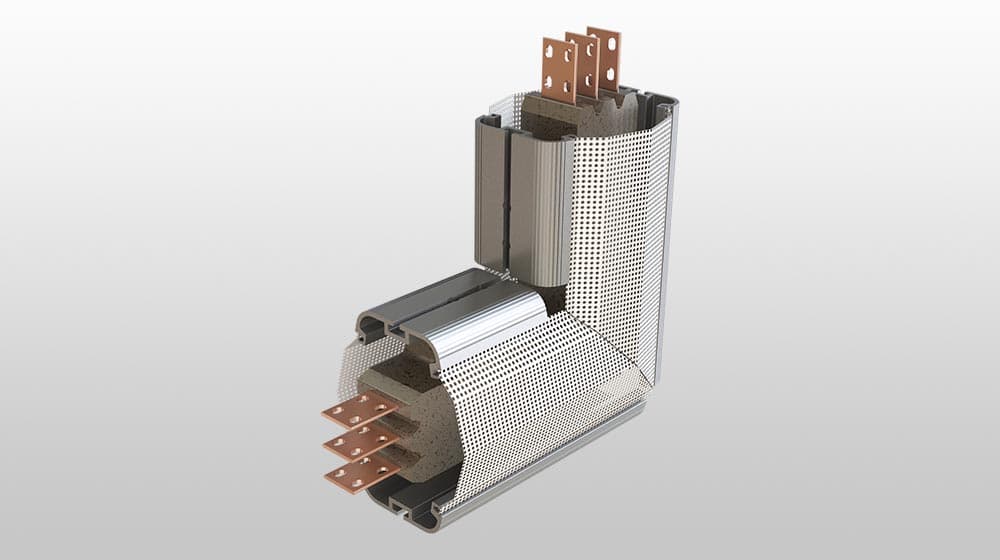

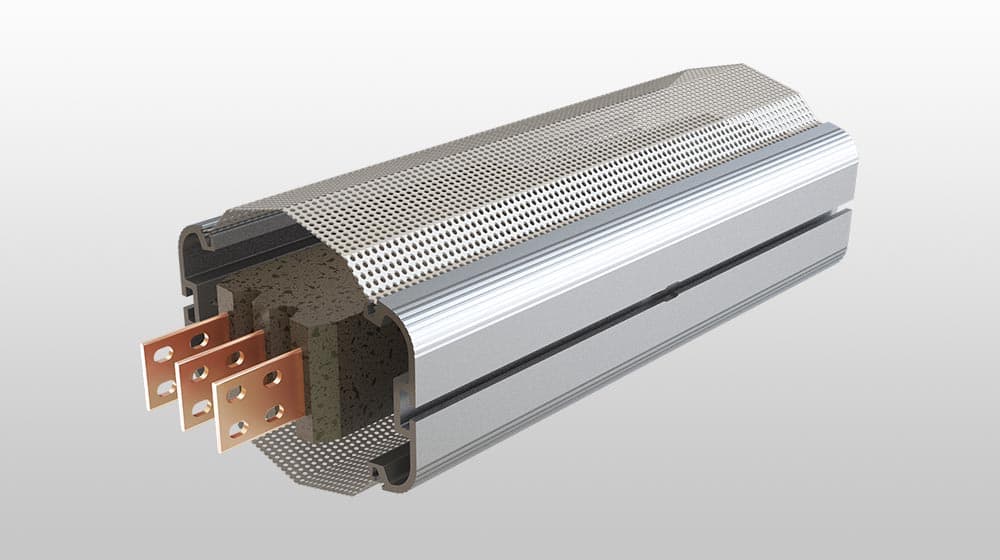

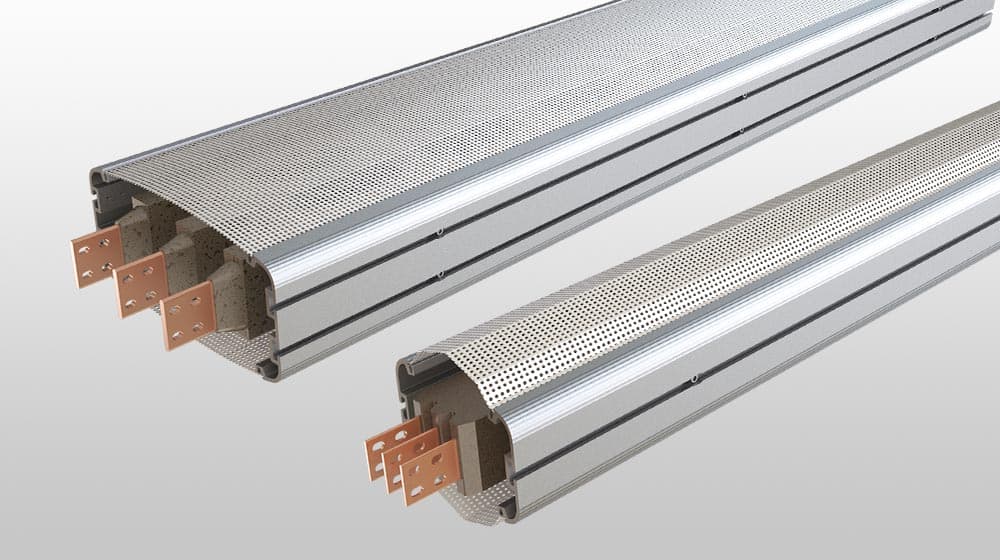

E-Line MV compact medium-voltage busbar systems ensure safe, effective power transmission and can be used for both horizontal and vertical applications. E-Line MV CR is produced with a compact enclosure made of tinned aluminium profile with a Cu conductor embedded in insulating material consisting of an alloy of silicon minerals and epoxy resin. The E-LINE MV (cast-resin) busbar system is available for 12 kV and 17.5 kV and is produced up to 5700 A as standard.
Technical Features
Current range
950 A to 5700 A current range
Rated performance taken from the original product datasheet.
Ingress protection
IP68 protection class
Protection and service continuity declared by the manufacturer.
Conductors
Fully tinned aluminium or copper conductors
Conductor configuration and materials available for the range.
Configuration
Configurable with 3 conductors
Key construction element or configuration of the busbar solution.
Features
- 950 A to 5700 A current range
- IP68 protection class
- Fully tinned aluminium or copper conductors
- Configurable with 3 conductors
- Insulating material made of an alloy of silicon minerals and epoxy resin
- Corrosion resistant
- Resistant to chemicals
- Pest resistant
- Suitable for tropical environments
- High mechanical strength
- No chimney effect
- Highly resistant to short circuit
