Power supply system for mobile lines
E-Line TB

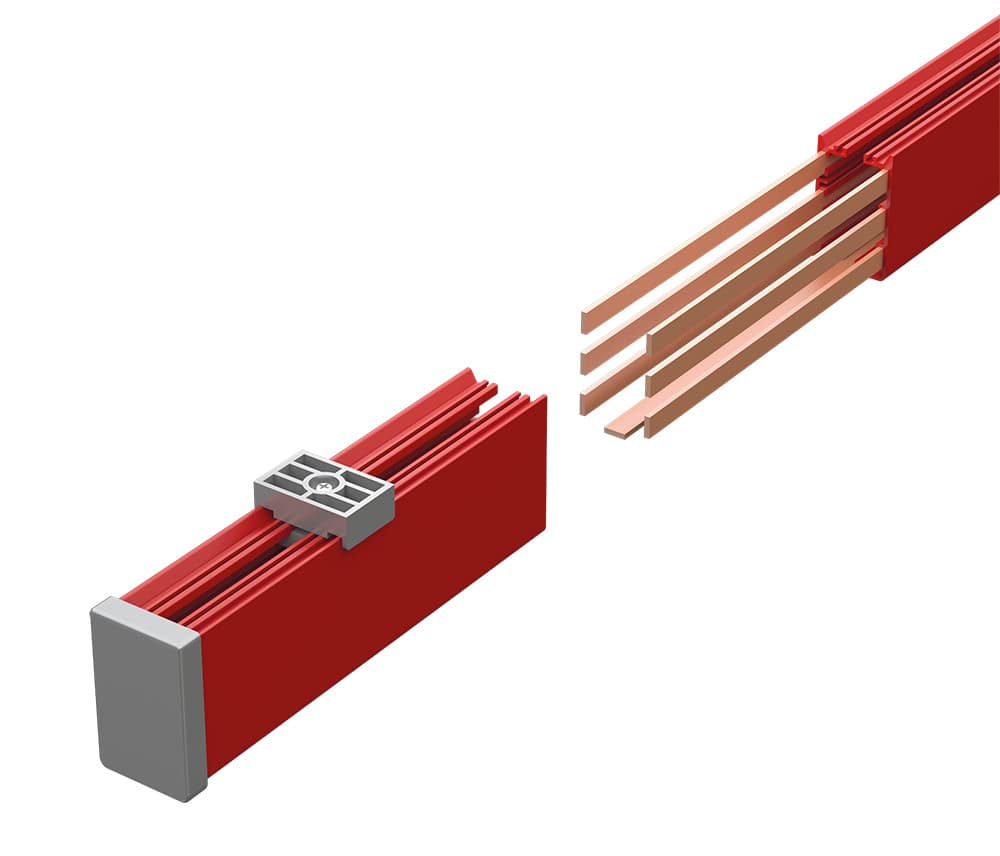

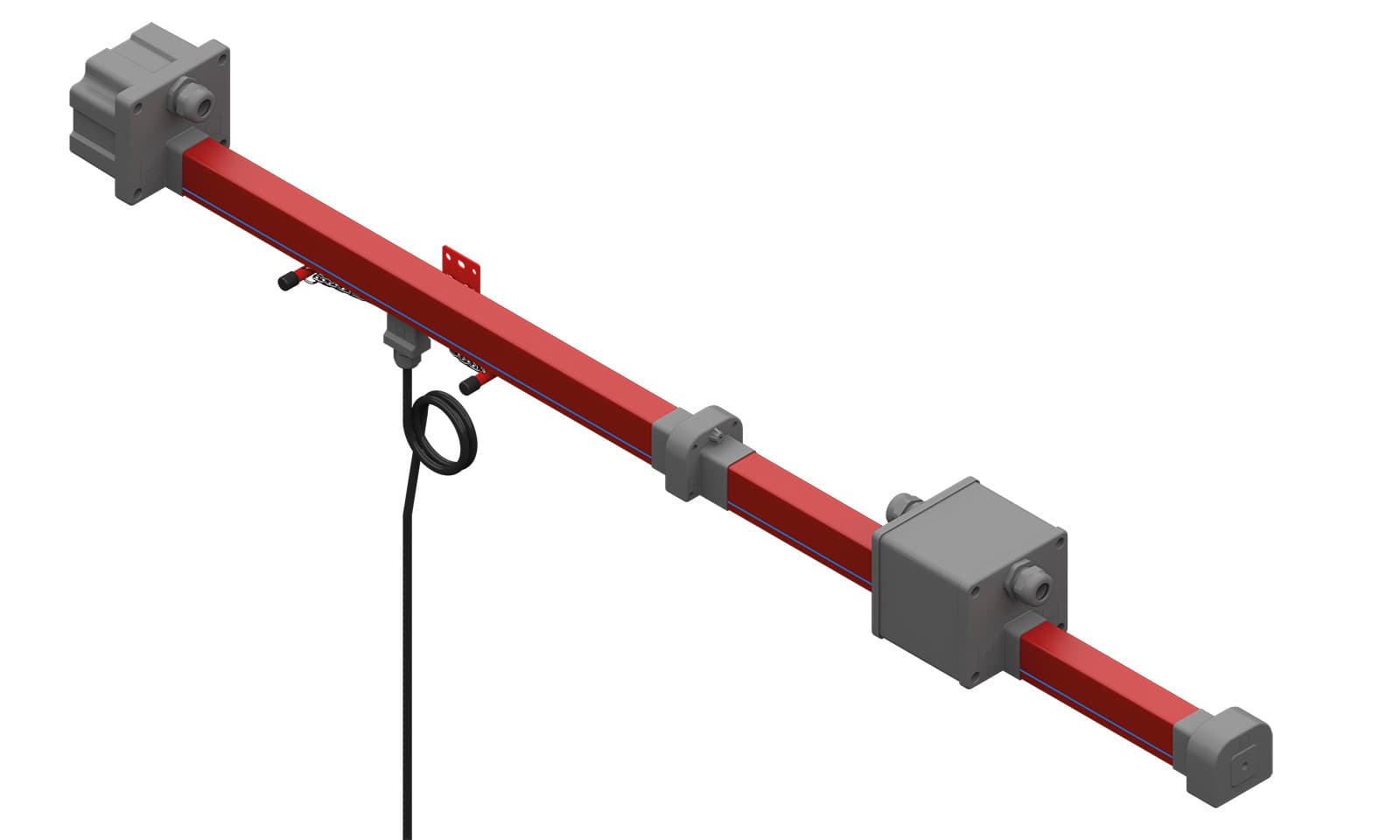

The E-Line TB busbar system consists of copper conductors and current collectors housed in a PVC-C enclosure to guarantee personnel safety. Continuous power supply and system movement are ensured by current collectors mechanically connected to the system. This eliminates the possibility of accidents and malfunctions in power distribution with suspended cables and reels in conventional systems. There is no fixed connection between the conductor enclosures and the conductors, or between the PVC-C enclosure and the sliding hangers; the necessary expansion capability is also provided, so no expansion element is required.
Technical Features
Current range
Rated current 40 A / 63 A / 75 A / 105 A / 130 A / 160 A
Rated performance taken from the original product datasheet.
Ingress protection
IP24 standard protection, IP44 with gasket
Protection and service continuity declared by the manufacturer.
Conductors
Continuous copper conductors: electrolytic copper conductors can be applied without interruption up to a maximum length of 150 m
Conductor configuration and materials available for the range.
Configuration
Number of conductors: 4 or 5
Key construction element or configuration of the busbar solution.
Features
- Continuous copper conductors: electrolytic copper conductors can be applied without interruption up to a maximum length of 150 m
- A neutral line on the enclosure indicates the neutral conductor
- The enclosure is made of PVC-C and the plastic accessories are made of PA6 raw material
- Non-flammability characteristics: UL 94 V0; colour: red
- Temperature range: from -40 °C to +55 °C
- The TBX system guarantees easy installation thanks to its light, strong double-layer structure
- A safety system prevents the current collector from being fitted the wrong way round
- Standard enclosure length: 4 metres
- Rated current 40 A / 63 A / 75 A / 105 A / 130 A / 160 A
- Number of conductors: 4 or 5
- Protection: IP24 standard, IP44 with gasket
- Rated current 40 A / 63 A / 75 A / 105 A / 130 A
