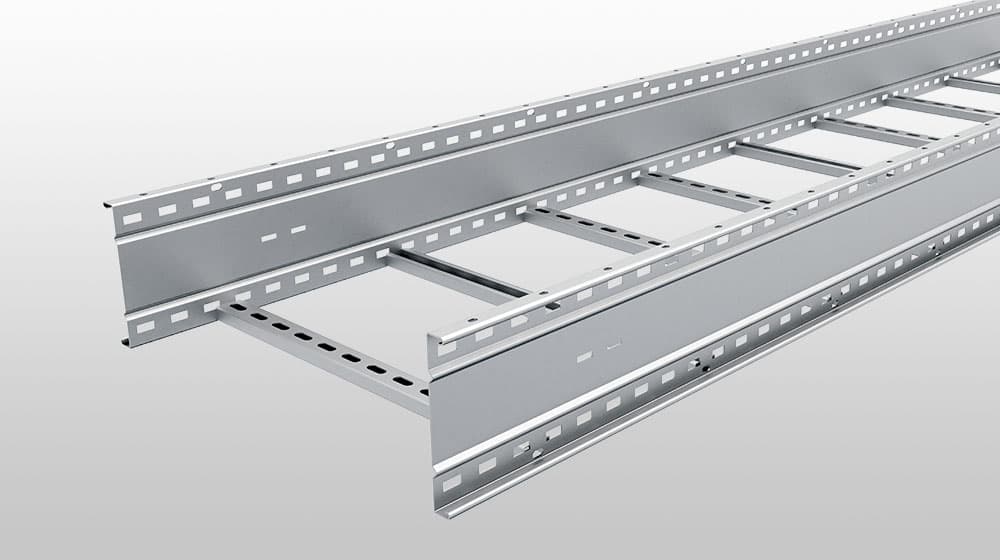

Extra-heavy-duty cable ladder
E-Line KCA OG
E-Line KCA OG cable ladders guarantee high strength, flexibility and a lightweight design at the same time. They are designed for superior load resistance against both impact and environmental factors.
Technical Features
Dimensions and thicknesses
NEMA 20C for the ladder with 150 mm height
Dimensional configurations and main variants declared by the manufacturer.
Material and finish
High-quality hot-dip galvanised using superior silicon steel, produced with 316L-grade stainless raw material
Main construction materials or finishes of the range.
Tests and certifications
IEC 61537 tested and certified by DEKRA
References to standards, tests or certifications in the original datasheet.
Configuration
Standard length 3 and 6 m
Distinctive construction element or installation detail of the solution.
Features
- IEC 61537 tested and certified by DEKRA
- NEMA VE-1 tested and certified by DEKRA
- NEMA 20C for the ladder with 150 mm height
- NEMA 12C for the ladder with 100 mm height
- Tested according to DIN 4102-12 at 1000 °C for 90 minutes and at -70 °C
- Superior cable-carrying capacity thanks to its heavy-duty structural design
- High-quality hot-dip galvanised using superior silicon steel, produced with 316L-grade stainless raw material
- High load capacity thanks to the specially designed side rails
- Tested in difficult conditions
- Standard length 3 and 6 m
- Superior production capacity (6 metres per minute)
- Fast delivery and shipping times
Applications
Extra-heavy-duty applicationsExtreme environmental conditionsHigh-capacity installationsSevere industrial areas
