Pre-galvanised foldable cable trays
E-Line KM

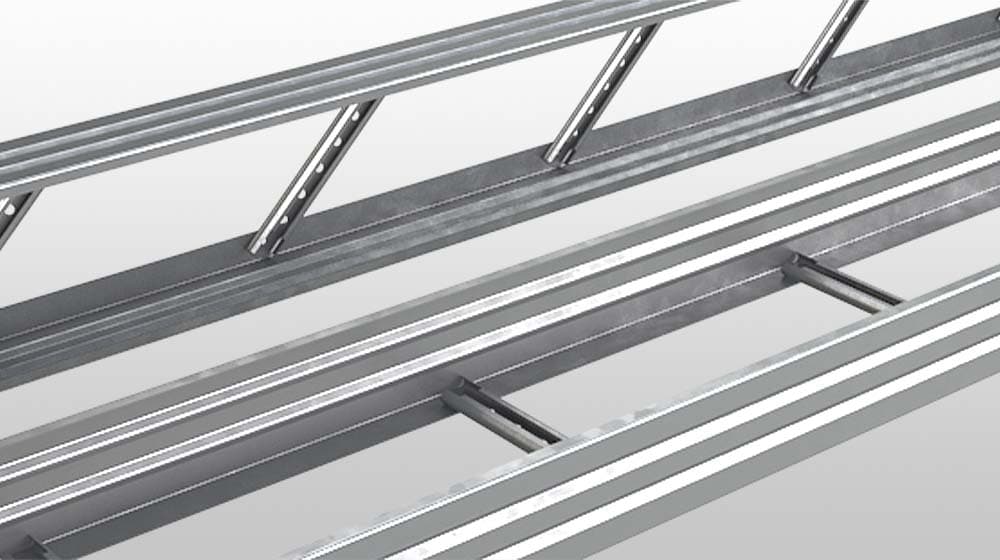

E-Line KM pre-galvanised foldable trays are made with a directional folding system. Thanks to this feature they take up less space than the E-Line KC series trays, reducing shipping and storage costs.
Technical Features
Dimensions and thicknesses
Customisable with 700/800/900/1000 mm widths
Dimensional configurations and main variants declared by the manufacturer.
Material and finish
Produced pre-galvanised according to TS EN 10143 / TS EN 10346
Main construction materials or finishes of the range.
Tests and certifications
Fire resistance certification (E30-E60-E90)
References to standards, tests or certifications in the original datasheet.
Configuration
Standard length 3000 mm (6000 mm length available on request)
Distinctive construction element or installation detail of the solution.
Features
- Customisable with 700/800/900/1000 mm widths
- Standard length 3000 mm (6000 mm length available on request)
- Produced pre-galvanised according to TS EN 10143 / TS EN 10346
- High strength and load capacity
- Can be used in horizontal rack applications on side walls, offering a cost advantage
- Cross structure at 300 mm intervals
- More space for cables than conventional ladder trays thanks to an exclusive cross-height system
- Fire resistance certification (E30-E60-E90)
Applications
Simplified transportCompact storageIndustrial interiorsHorizontal racks
