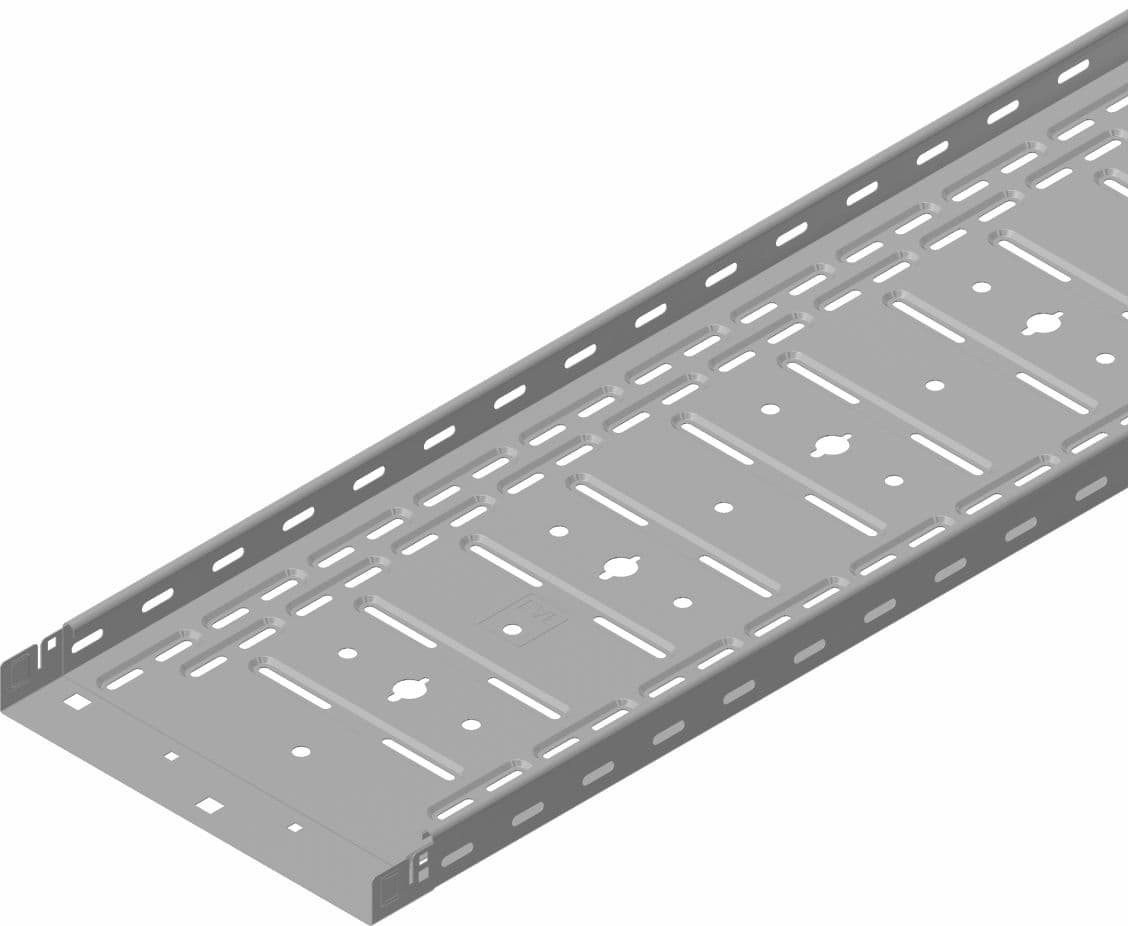

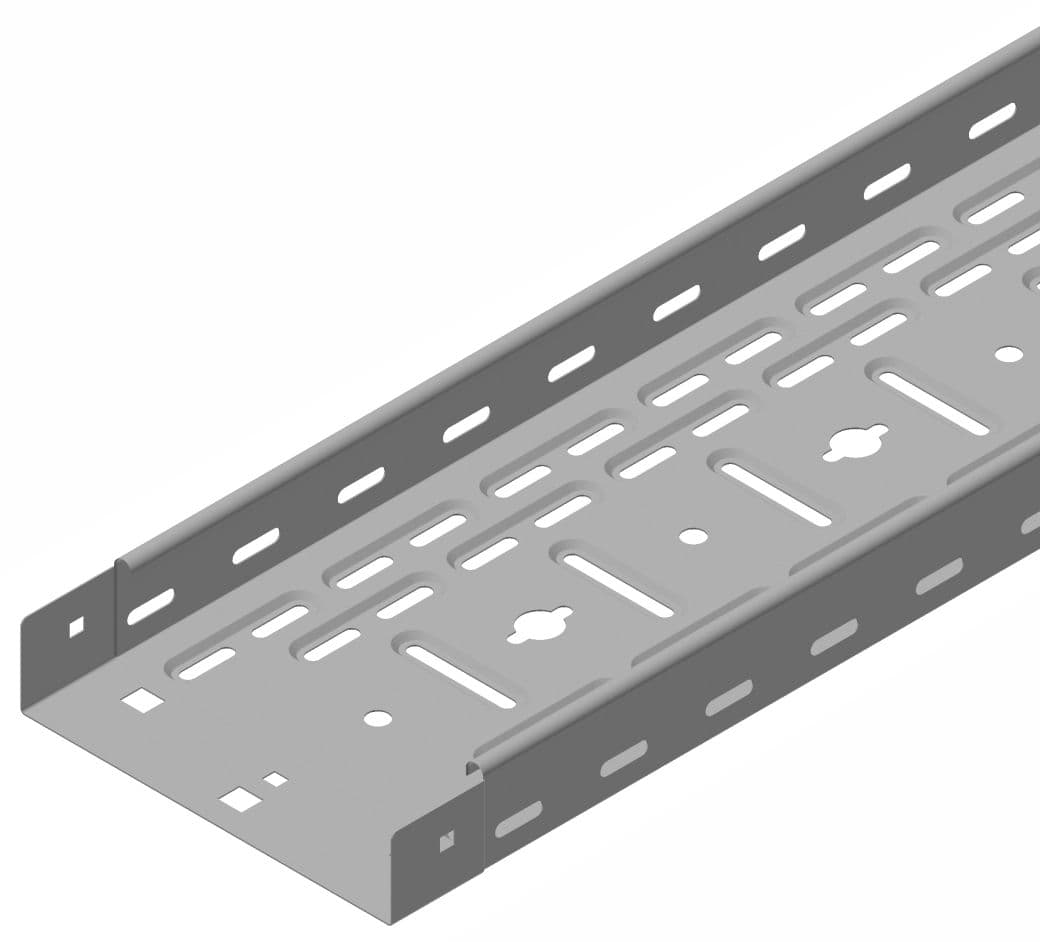

Snap-on cable trays for interiors
E-Line UK
E-LINE UK cable tray systems can be bolted together without additional accessories thanks to the design of the end sections with snap-on system. The lower thickness, low cost and minimal installation time on site are the strengths of this product line. They are designed to support cable installations inside buildings and structures.
Technical Features
Dimensions and thicknesses
Supplied in 100-200-300 mm widths with 0.7 mm thickness and 400-500-600 mm widths with 0.9 mm thickness
Dimensional configurations and main variants declared by the manufacturer.
Material and finish
Painted galvanised options on request (epoxy resin, epoxy polyester, polyester)
Main construction materials or finishes of the range.
Tests and certifications
Fire resistance certification (E30-E60-E90)
References to standards, tests or certifications in the original datasheet.
Configuration
Easy installation without additional accessories thanks to the snap-on system
Distinctive construction element or installation detail of the solution.
Features
- Supplied in 100-200-300 mm widths with 0.7 mm thickness and 400-500-600 mm widths with 0.9 mm thickness
- Able to carry the same loads as products of traditional thickness thanks to the special tray-on-channel system
- Easy installation without additional accessories thanks to the snap-on system
- Wide range of accessories
- Fire resistance certification (E30-E60-E90)
- Product for medium/heavy loads
- Standard tray height of 40 mm and 60 mm (produced in special heights of 50-75-100 mm)
- Allows various accessories to be connected through 20.5 mm diameter holes in the centre of the tray (allows quick connection of devices such as lighting panels, fire detectors, etc.)
- Lengths of 3000-4000-5000-6000 mm can also be produced
- Wide range of accessories
- Fire resistance certification (E30-E60-E90)
- Painted galvanised options on request (epoxy resin, epoxy polyester, polyester)
