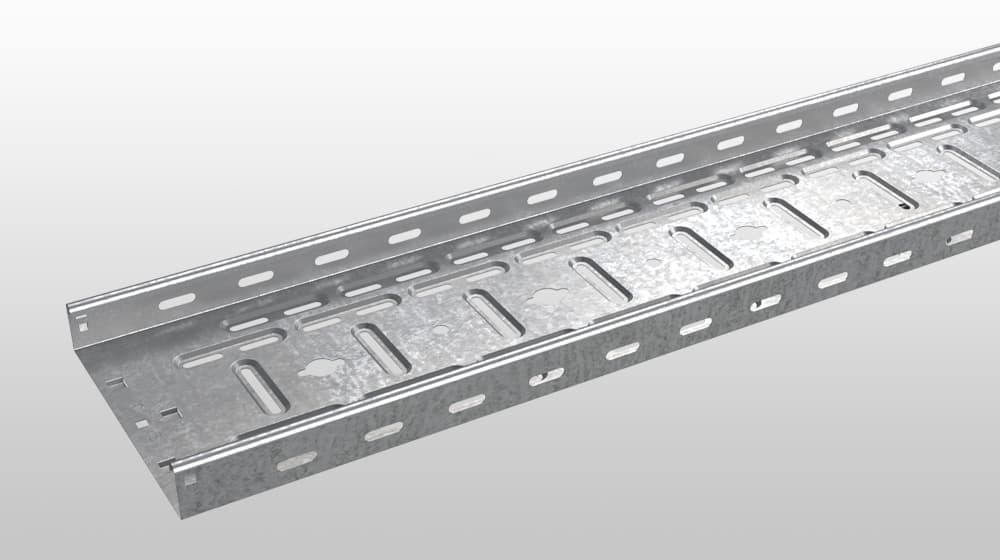

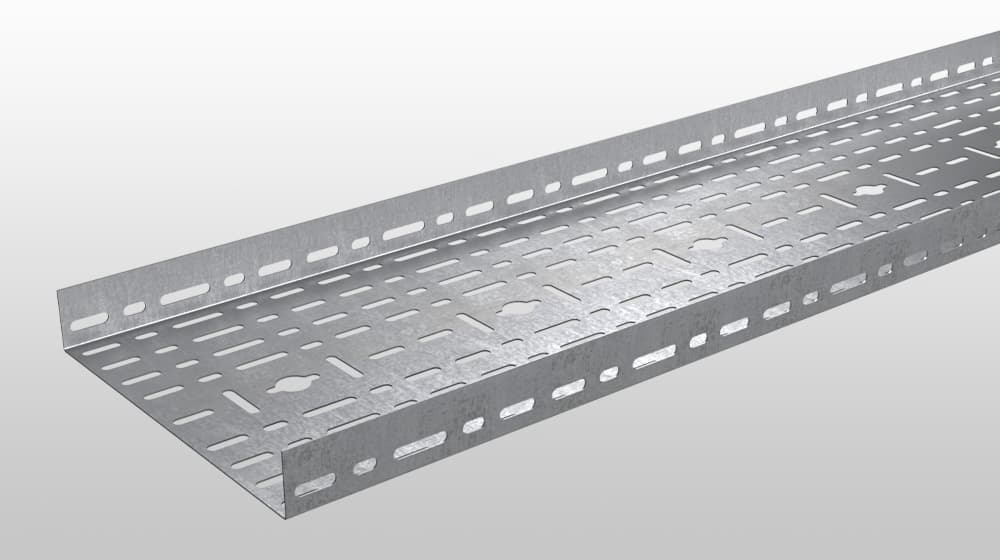

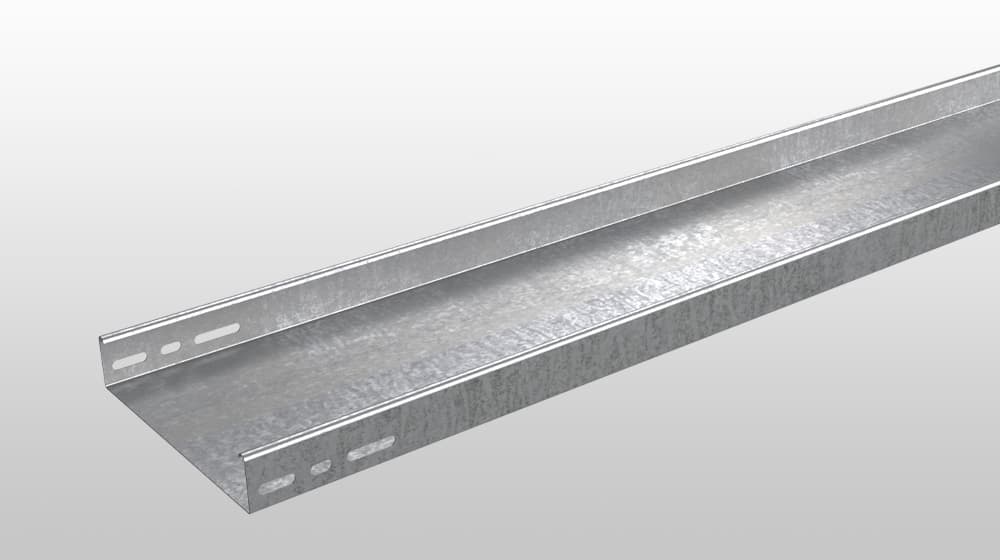

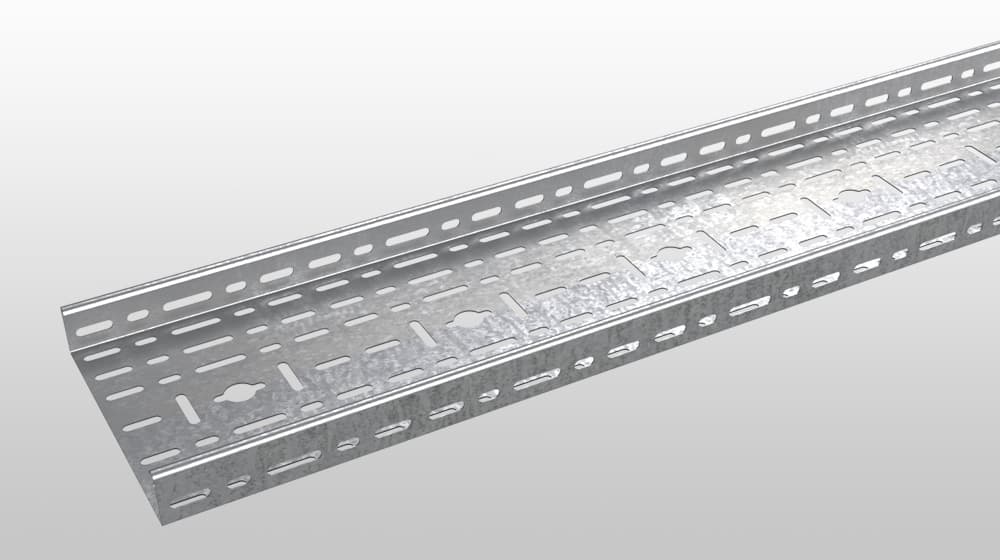

Perforated pre-galvanised cable trays
E-Line UKS-UKD-UKN-UKFE
UKS-UKD-UKN-UKFE perforated pre-galvanised cable trays are produced according to TSE and ISO 10143 standards in standard 3 m pieces. They are designed to support cable installations inside buildings and structures. The flexible module, specially designed and manufactured for our cable tray range, offers flexibility up to 90° so that trays can be installed quickly and easily at the desired angle.
Technical Features
Dimensions and thicknesses
Standard tray height of 40 mm and 60 mm (produced in special heights of 50-75-100 mm)
Dimensional configurations and main variants declared by the manufacturer.
Material and finish
Painted galvanised options on request (epoxy resin, epoxy polyester, polyester)
Main construction materials or finishes of the range.
Tests and certifications
Fire resistance certification (E30-E60-E90)
References to standards, tests or certifications in the original datasheet.
Configuration
Compatible with UKS modules
Distinctive construction element or installation detail of the solution.
Features
- Product for medium/heavy loads
- Standard tray height of 40 mm and 60 mm (produced in special heights of 50-75-100 mm)
- Allows various accessories to be connected through 20.5 mm diameter holes in the centre of the tray (allows quick connection of devices such as lighting panels, fire detectors, etc.)
- Lengths of 3000-4000-5000-6000 mm can also be produced
- Wide range of accessories
- Fire resistance certification (E30-E60-E90)
- Painted galvanised options on request (epoxy resin, epoxy polyester, polyester)
- Compatible with UKS modules
- Wide range of accessories
- Supplied in 100-200-300 mm widths with 0.7 mm thickness and 400-500-600 mm widths with 0.9 mm thickness
- Designed to support loads similar to products with conventional thicknesses thanks to its special snap-on platform design and the materials used
- Compatible with UKS modules
