Continuous power system for moving machines

E-Line URC

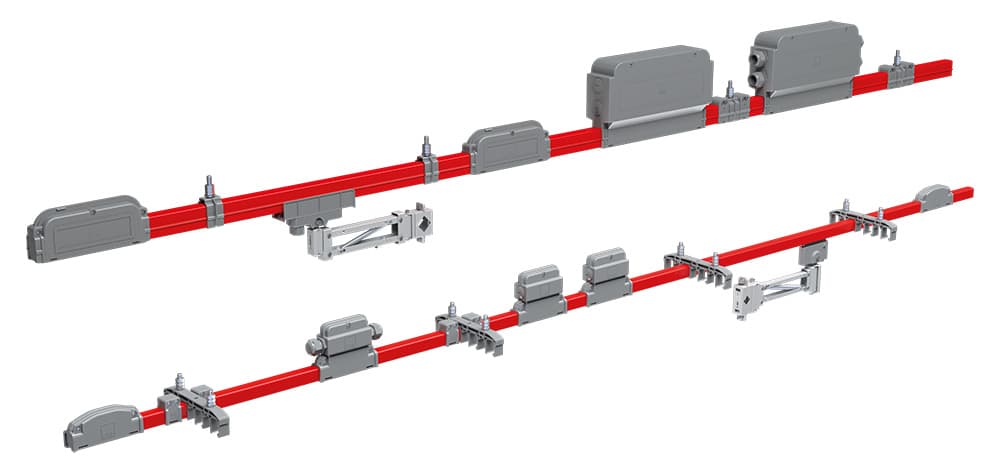

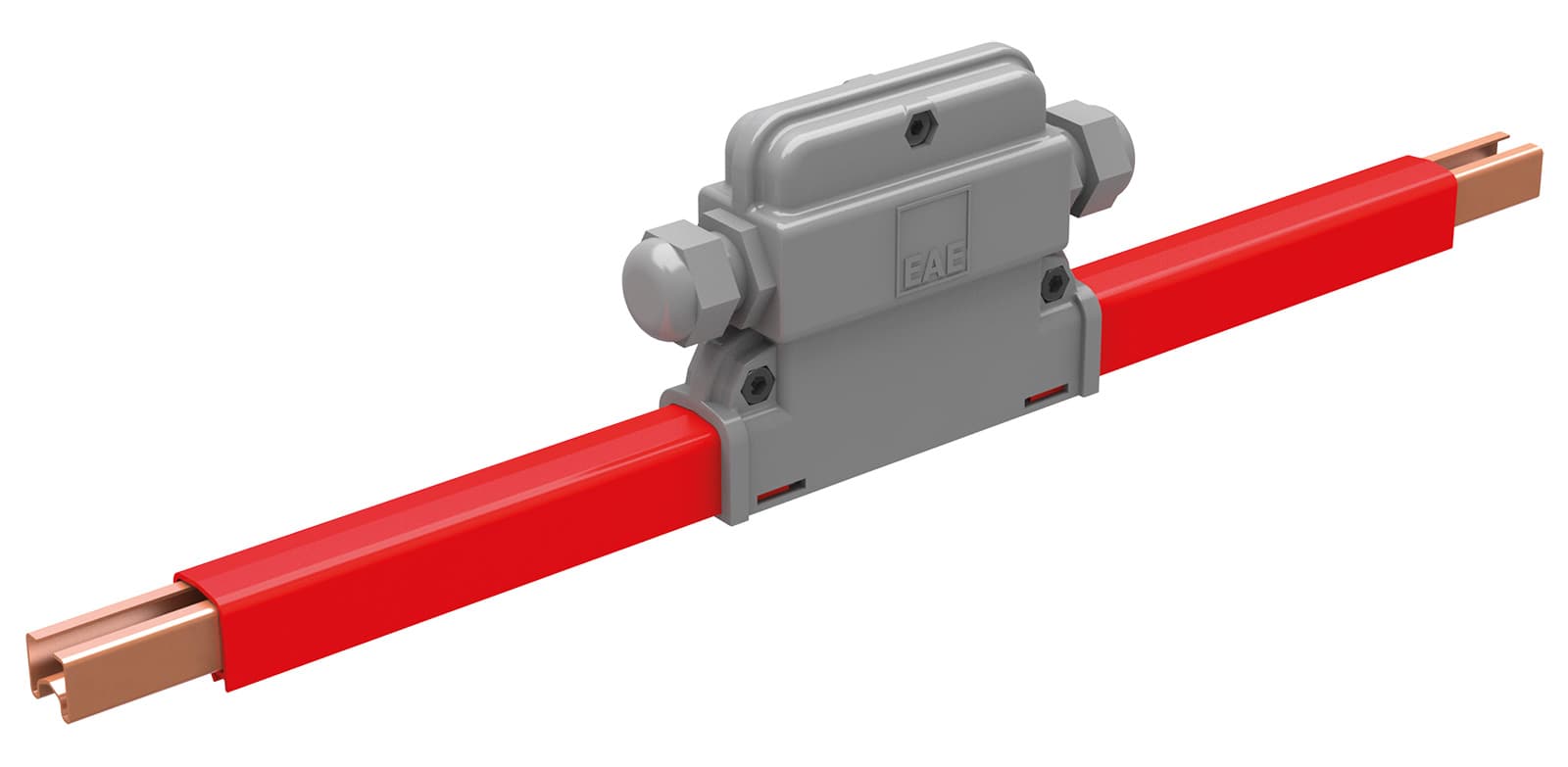

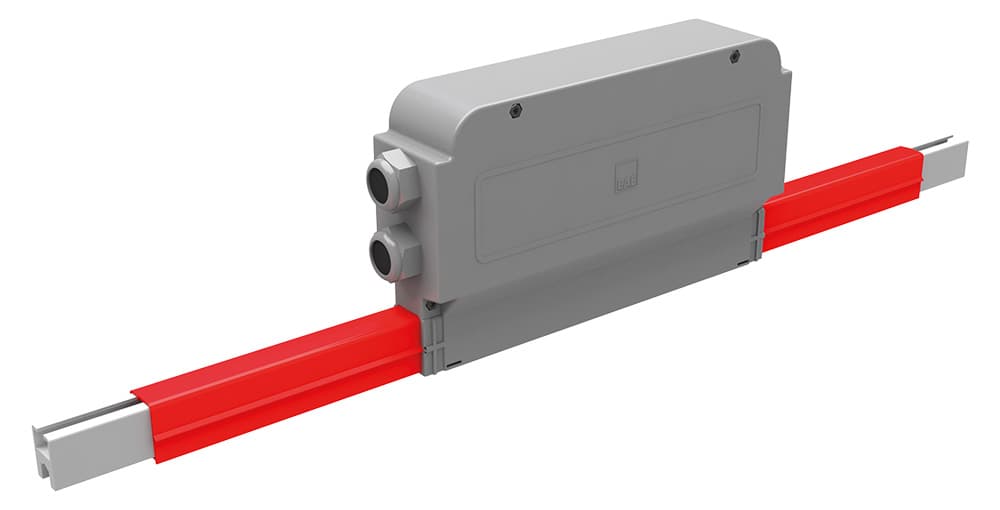

The E-Line URC range is designed to supply continuous power to moving machines. The system is easy to install and can be used in both outdoor and indoor plants. It offers a safe solution for prolonged operation since there are no moving cables, which could cause accidents and malfunctions. The E-Line URC system comprises a feed unit with end cap that supplies power to conductors made of copper, galvanised steel or aluminium with a stainless-steel contact surface. Power is supplied to the machine through a moving collector that runs along the entire length of the conductors. An expansion module protects the installed system from external mechanical stress. Each end of the busbar is also fitted with an end cap so the installation can be completed in complete safety.

Technical Features

Features

• ✓IP23 protection
• ✓Personal safety guaranteed by conductor insulation
• ✓Standard length: 4 m (copper and galvanised steel conductor), 6 m (aluminium conductor)
• ✓Fire protection level class B1 DIN 4102 and UL94
• ✓Eliminates the risk of accidents and malfunctions caused by moving cables and similar elements in the plant
• ✓Can be used safely for many years in outdoor conditions thanks to the design of the conductors in different bodies, the external insulation and the choice of materials
• ✓For serial systems operating on the same axis, a single line is sufficient
• ✓Power can be drawn with more than one trolley on the same line
• ✓Can be installed horizontally or vertically depending on system requirements
• ✓The system is supported by sliding hangers
• ✓Rated current 320 A

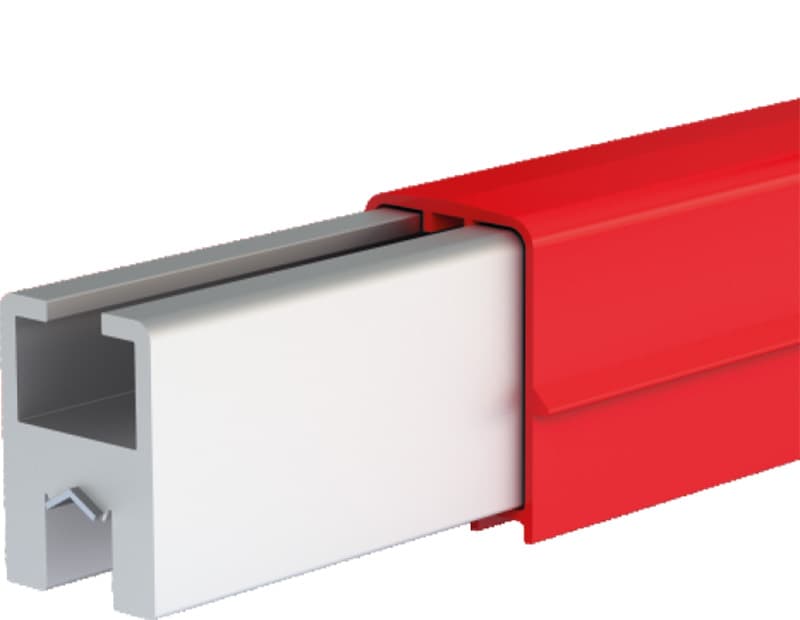

• ✓Aluminium conductors
